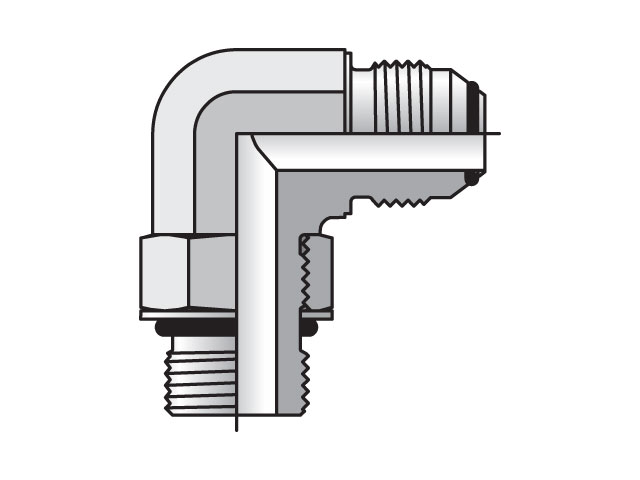

Triple-Lok 2 37° 90° Elbow C5OXO
Triple-Lok 2 - Straight Thread Elbow 37° Flare / SAE-ORB
Email this page to a friend
Showing 1 - 3 of 3
| Part # | Availability | Price | |
|---|---|---|---|
| 4 C5OXO-SS | Backorder | $53.33 | |
| 8 C5OXO-SS | In Stock | $87.71 | |
| 12 C5OXO-SS | Backorder | $216.60 |
| End 1 | End 2 | Material | UOM |
|---|---|---|---|
| 1/4 Inch | 7/16-20 UN/UNF-2A | Stainless Steel | EACH |
| 1/2 Inch | 3/4-16 UN/UNF-2A | Stainless Steel | EACH |
| 3/4 Inch | 1 1/16-12 UN/UNF-2A | Stainless Steel | EACH |
Showing 1 - 3 of 3
Triple-Lok 2 combines the versatility of stainless steel Triple-Lok with the added advantage of an elastomeric seal. Triple-Lok 2 incorporates a replaceable seal in the nose of the flare, which is positioned so that leak-free connections are made without compromising the strength of the fitting. Triple-Lok 2 is a direct interchange for any industrial 37° flare fitting, allowing current 37° flare fitting users to take advantage of Triple-Lok 2 without changing hoses or tubes.
