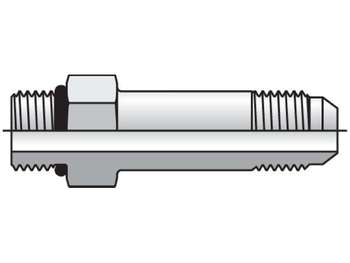

Triple-Lok 37° Straight FF5OX
Triple-Lok - Long Straight Thread Connector 37° Flare / SAE-ORB
Email this page to a friend
Showing 1 - 13 of 13
| Part # | Availability | Price | |
|---|---|---|---|
| 4 FF5OX-S | 263 | $9.34 | |
| 4 FF5OX-SS | Backorder | $170.02 | |
| 4-6 FF5OX-SS | Backorder | $80.97 | |
| 6 FF5OX-S | 527 | $9.66 | |
| 6 FF5OX-SS | 1 | $77.26 | |
| 8 FF5OX-S | 683 | $9.43 | |
| 8 FF5OX-SS | 10 | $94.82 | |
| 10 FF5OX-S | 53 | $14.14 | |
| 12 FF5OX-S | 121 | $22.70 | |
| 12 FF5OX-SS | 2 | $149.76 | |
| 16 FF5OX-S | 78 | $33.84 | |
| 16 FF5OX-SS | 2 | $223.38 | |
| 20 FF5OX-S | 70 | $83.36 |
| Material | End 1 | End 2 | UOM |
|---|---|---|---|
| Steel | 1/4 Inch | 7/16-20 UN/UNF-2A | EACH |
| Stainless Steel | 1/4 Inch | 7/16-20 UN/UNF-2A | EACH |
| Stainless Steel | 1/4 Inch | 9/16-18 UN/UNF-2A | EACH |
| Steel | 3/8 Inch | 9/16-18 UN/UNF-2A | EACH |
| Stainless Steel | 3/8 Inch | 9/16-18 UN/UNF-2A | EACH |
| Steel | 1/2 Inch | 3/4-16 UN/UNF-2A | EACH |
| Stainless Steel | 1/2 Inch | 3/4-16 UN/UNF-2A | EACH |
| Steel | 5/8 Inch | 7/8-14 UN/UNF-2A | EACH |
| Steel | 3/4 Inch | 1 1/16-12 UN/UNF-2A | EACH |
| Stainless Steel | 3/4 Inch | 1 1/16-12 UN/UNF-2A | EACH |
| Steel | 1 Inch | 1 5/16-12 UN/UNF-2A | EACH |
| Stainless Steel | 1 Inch | 1 5/16-12 UN/UNF-2A | EACH |
| Steel | 1 1/4 Inch | 1 5/8-12 UN/UNF-2A | EACH |
Showing 1 - 13 of 13
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
