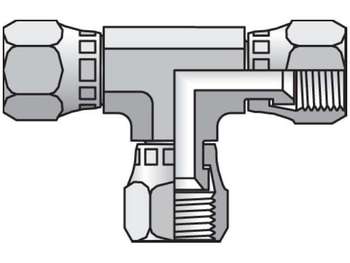

Triple-Lok 37° Tee JX6
Triple-Lok - Swivel Nut Union Tee 37° Swivel (all three ends)
Email this page to a friend
Showing 1 - 6 of 6
| Part # | Availability | Price | |
|---|---|---|---|
| 4 JX6-S | 22 | $80.92 | |
| 6 JX6-S | 16 | $88.18 | |
| 8 JX6-S | 36 | $88.31 | |
| 10 JX6-S | 21 | $101.69 | |
| 12 JX6-S | 28 | $200.08 | |
| 16 JX6-S | 22 | $272.27 |
| Material | End 1 | End 2 | End 3 | End 4 | UOM |
|---|---|---|---|---|---|
| Steel | 1/4 Inch | 1/4 Inch | 1/4 Inch | 1/4 Inch | EACH |
| Steel | 3/8 Inch | 3/8 Inch | 3/8 Inch | EACH | |
| Steel | 1/2 Inch | 1/2 Inch | 1/2 Inch | EACH | |
| Steel | 5/8 Inch | 5/8 Inch | 5/8 Inch | EACH | |
| Steel | 3/4 Inch | 3/4 Inch | 3/4 Inch | EACH | |
| Steel | 1 Inch | 1 Inch | 1 Inch | EACH |
Showing 1 - 6 of 6
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
