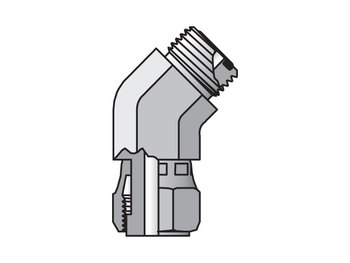

Seal-Lok ORFS 45° Elbow V6LO
Seal-Lok - 45° Swivel Nut Elbow ORFS / ORFS Swivel
Email this page to a friend
Showing 1 - 8 of 8
| Part # | Availability | Price | |
|---|---|---|---|
| 4 V6LO-S | 219 | $22.71 | |
| 6 V6LO-S | 205 | $29.07 | |
| 8 V6LO-S | 313 | $32.34 | |
| 10 V6LO-S | 170 | $44.87 | |
| 12 V6LO-S | 132 | $46.14 | |
| 16 V6LO-S | 150 | $54.17 | |
| 20 V6LO-S | 95 | $57.11 | |
| 24 V6LO-S | 6 | $71.42 |
| Material | End 1 | End 2 | UOM |
|---|---|---|---|
| Steel | 1/4 Inch | 1/8 Inch | EACH |
| Steel | 3/8 Inch | 3/8 Inch | EACH |
| Steel | 1/2 Inch | 1/2 Inch | EACH |
| Steel | 5/8 Inch | 5/8 Inch | EACH |
| Steel | 3/4 Inch | 3/4 Inch | EACH |
| Steel | 1 Inch | 1 Inch | EACH |
| Steel | 1 1/4 Inch | 1 1/4 Inch | EACH |
| Steel | 1 1/2 Inch | 1 1/2 Inch | EACH |
Showing 1 - 8 of 8
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
End 1:
1 1/2 Inch
End 2:
1 1/2 Inch
