SELECTED FILTERS

Manually Selected clear all

	Department: Hydraulic Products
	Product Type: Parker Hydraulic Valves
	Product Sub-Type: Cartridge Valves
	Product: DSH084 Solenoid Valve

Automatically Selected

»	Valve Type Detail: Spool Type - 4-Way
»	Max Pressure: 350 Bar (5000 PSI)
»	Series: DSH084
»	Valve Type: Solenoid Valve
»	Port: None - Cartridge Only
»	Valve Style: 3-way or 4-way spool (see catalog for flow paths)
»	Common Cavity Type: Size 08, 4-way
»	Parker Division: Hydraulic Cartridge Systems
»	Rated Flow: 11-15 LPM (3-4 GPM)
»	Screen: None
»	Valve Body: B08-4

AVAILABLE FILTERS

Override Type

Leakage

Operating Temperature

Seals

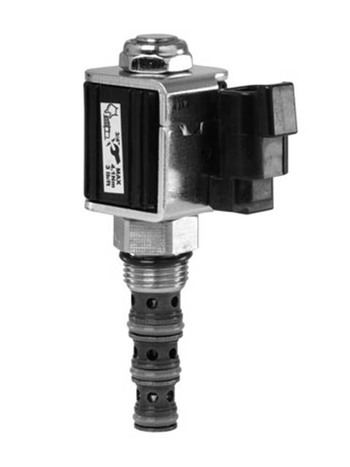

DSH084 Solenoid Valve

Click Image to Zoom

DSH084 Solenoid Valve

Spool Type - 4-Way Solenoid Valve for Size 08, 4-way Cavity (Coil Not Included)

Email this page to a friend

Showing 1 - 9 of 9

	Part #	Availability	Price
	DSH084B	9	$96.53
	DSH084BV	Backorder	$102.71
	DSH084BT	Backorder	$140.58
	DSH084BTV	Backorder	$146.27
	DSH084N	Backorder	$99.74
	DSH084NT	Backorder	$144.29
	DSH084NTV	Backorder	$149.74
	DSH084E1	Backorder	$99.74
	DSH084E1V	Backorder	$106.18

Rated Flow	Leakage	Max Pressure	UOM	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body
11-15 LPM (3-4 GPM)	240 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	240 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	240 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	240 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 4-way	B08-4
11-15 LPM (3-4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 4-way	B08-4

Showing 1 - 9 of 9

DSH084 Series Solenoid Valve - Spool Type - 4-Way (Coil Not Included)

Solenoid Valves
