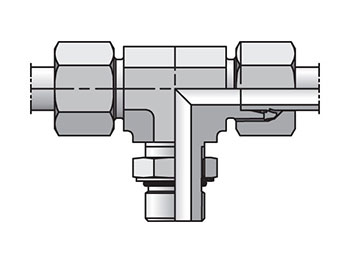

EO/EO-2 Tee, Adjustable Branch - TEE-UNF
EO/EO-2 Tee, Adjustable Branch - 24° Flareless / SAE-ORB
Email this page to a friend
Showing 1 - 9 of 9
| Material | End 1 | End 2 | End 3 | UOM | O-Ring/Seal Material | Pressure Series | EO-2 Seal | Pressure Rating |
|---|---|---|---|---|---|---|---|---|
| Steel | 8 mm | 8 mm | 7/16-20 UN/UNF-2A | EACH | Nitrile | Light | Nitrile | 315 bar |
| Steel | 10 mm | 10 mm | 9/16-18 UN/UNF-2A | EACH | Nitrile | Light | 315 bar | |
| Steel | 12 mm | 12 mm | 3/4-16 UN/UNF-2A | EACH | Nitrile | Light | 315 bar | |
| Steel | 12 mm | 12 mm | 3/4-16 UN/UNF-2A | EACH | Nitrile | Light | Nitrile | 315 bar |
| Steel | 12 mm | 12 mm | 9/16-18 UN/UNF-2A | EACH | Nitrile | Light | Nitrile | 315 bar |
| Steel | 15 mm | 15 mm | 3/4-16 UN/UNF-2A | EACH | Nitrile | Light | 315 bar | |
| Steel | 16 mm | 16 mm | 7/8-14 UN/UNF-2A | EACH | Nitrile | Heavy | 400 bar | |
| Steel | 16 mm | 16 mm | 7/8-14 UN/UNF-2A | EACH | Nitrile | Heavy | Nitrile | 400 bar |
| Steel | 20 mm | 20 mm | 1 1/16-12 UN/UNF-2A | EACH | Nitrile | Heavy | Nitrile | 400 bar |
Showing 1 - 9 of 9
Parker EO and EO-2 metric flareless bite type tube fittings have become the "world standard' for many industrial manufacturers requiring dependable leak free hydraulic tube fittings. The EO progressive ring (ferrule) has two cutting edges that bite the tube outer diameter. EO-2 fittings incorporate elastomeric seals on all joints to insure leak free systems.
