H Series Couplers - Female Thread
Click Image to Zoom

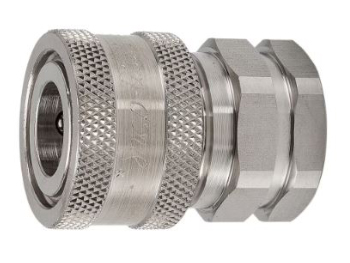

H Series Couplers - Female Thread

Snap-tite General Purpose Female Coupler

Email this page to a friend
Showing 1 - 20 of 59
Part # Availability Price
APHC4-4F 3 $28.11
AVHC4-4F 4 $37.83
AVHC6-6F 5 $86.40
AVHC8-8F 2 $161.16
BPHC4-4F 52 $20.52
BVHC4-4F 822 $29.01
BPHC6-6F 21 $30.16
BVHC6-6F 79 $38.89
BPHC8-8F 40 $36.01
BVHC8-8F 352 $54.24
BPHC12-12F 1 $50.83
BVHC12-12F 1 $84.18
BPHC16-16F 18 $89.96
BVHC16-16F 58 $144.65
BPHC20-20F Backorder $165.88
BVHC20-20F 47 $292.32
BPHC24-24F Backorder $278.25
BVHC24-24F 19 $409.82
BPHC32-32F Backorder $728.97
BVHC32-32F Backorder $851.57
Max Pressure Body Size Configuration Type Material Thread 1 UOM
4000 PSI (280 bar) 1/4 Inch Female NPTF Aluminum 1/4 NPT EACH
2250 PSI (160 bar) 1/4 Inch Female NPTF Aluminum 1/4 NPT EACH
2250 PSI (160 bar) 3/8 Inch Female NPTF Aluminum 3/8 NPT EACH
1750 PSI (120 bar) 1/2 Inch Female NPTF Aluminum 1/2 NPT EACH
4000 PSI (280 bar) 1/4 Inch Female NPTF Brass 1/4 NPT EACH
2250 PSI (160 bar) 1/4 Inch Female NPTF Brass 1/4 NPT EACH
4000 PSI (280 bar) 3/8 Inch Female NPTF Brass 3/8 NPT EACH
2250 PSI (160 bar) 3/8 Inch Female NPTF Brass 3/8 NPT EACH
4000 PSI (280 bar) 1/2 Inch Female NPTF Brass 1/2 NPT EACH
2000 PSI (140 bar) 1/2 Inch Female NPTF Brass 1/2 NPT EACH
3500 PSI (240 bar) 3/4 Inch Female NPTF Brass 3/4 NPT EACH
2000 PSI (140 bar) 3/4 Inch Female NPTF Brass 3/4 NPT EACH
3000 PSI (210, bar) 1 Inch Female NPTF Brass 1 NPT EACH
1750 PSI (120 bar) 1 Inch Female NPTF Brass 1 NPT EACH
10,000 PSI (70 bar) 1 1/4 Inch Female NPTF Brass 1 1/4 NPT EACH
350 PSI (20 bar) 1 1/4 Inch Female NPTF Brass 1 1/4 NPT EACH
10,000 PSI (70 bar) 1 1/2 Inch Female NPTF Brass 1 1/2 NPT EACH
350 PSI (20 bar) 1 1/2 Inch Female NPTF Brass 1 1/2 NPT EACH
750 PSI (50 bar) 2 Inch Female NPTF Brass 2 NPT EACH
400 PSI (30 bar) 2 Inch Female NPTF Brass 2 NPT EACH
Showing 1 - 20 of 59
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
