JXL0 Series Lever Actuated Connector for External Tubing

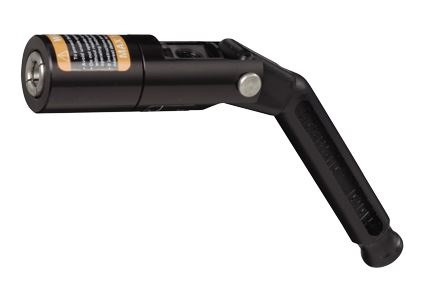

Click Image to Zoom

JXL0 Series Lever Actuated Connector for External Tubing

Lever actuated connector for grip and seal connection to external

Email this page to a friend
Showing 1 - 4 of 4
Part # Availability Price
JXL00250 Backorder $390.00
JXL00312 Backorder $390.00
JXL00375 Backorder $390.00
JXL00500 Backorder $390.00
Grip Size (+0.010") Rated PSI Dim A Dim B Dim C Dim D Dim E Dim L Housing Materials Seal Material UOM
0.250" Vacuum to 1000 7.27 (184.7) 3.42 (86.9) 1.13 (28.8) 4.22 (107.2) 1/8" NPT 0.85 (21.6) Aluminum, Stainless Steel and Delrin Neoprene EACH
0.312" Vacuum to 1000 7.27 (184.7) 3.42 (86.9) 1.13 (28.8) 4.22 (107.2) 1/8" NPT 0.85 (21.6) Aluminum, Stainless Steel and Delrin Neoprene EACH
0.375" Vacuum to 1000 7.27 (184.7) 3.42 (86.9) 1.13 (28.8) 4.22 (107.2) 1/8" NPT 0.85 (21.6) Aluminum, Stainless Steel and Delrin Neoprene EACH
0.500" Vacuum to 1000 7.27 (184.7) 3.42 (86.9) 1.13 (28.8) 4.22 (107.2) 1/8" NPT 0.85 (21.6) Aluminum, Stainless Steel and Delrin Neoprene EACH
Showing 1 - 4 of 4

The JXL Series provides quick and effortless connections for tubing especially copper, steel and aluminum tubes that are used with refrigerant based products. The unique collect gripping and sealing design provides unmatched sealing reliability and resists removal under pressure. The connectors utilize a singular seal which can be quickly replaced at your work center to minimize down-time, maintenance and tool inventory. Neoprene seals are standard for refrigerant based applications but they are available with any elastomer required for your application.



- Pressures to 1000 psi for manual connections
- Resists removal under pressure
- Reliable, pressure enhanced sealing
- Quick and easy seal replacement
- Vacuum to 10 millitorr (micron)
- Temperature range from -40°F to 250°F
- Body - Anodized aluminum with Delrin Handle
- Gripping Collets - Stainless steel snap rings, collets and springs
- Main Seal - Neoprene (others available on request)
