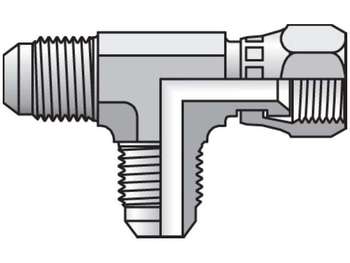

Triple-Lok 37° Tee R6X
Triple-Lok - Swivel Nut Run Tee 37° Flare / 37° Swivel / 37° Flare
Email this page to a friend
Showing 1 - 19 of 19
| End 1 | End 2 | End 3 | End 4 | Material | UOM |
|---|---|---|---|---|---|
| 1/4 Inch | 1/4 Inch | 1/4 Inch | 1/4 Inch | Steel | EACH |
| 1/4 Inch | 1/4 Inch | 1/4 Inch | 1/4 Inch | Stainless Steel | EACH |
| 5/16 Inch | 5/16 Inch | 5/16 Inch | N/A | Steel | EACH |
| 5/16 Inch | 5/16 Inch | 5/16 Inch | N/A | Stainless Steel | EACH |
| 3/8 Inch | 3/8 Inch | 3/8 Inch | N/A | Steel | EACH |
| 3/8 Inch | 3/8 Inch | 3/8 Inch | N/A | Stainless Steel | EACH |
| 1/2 Inch | 1/2 Inch | 1/2 Inch | N/A | Steel | EACH |
| 1/2 Inch | 1/2 Inch | 1/2 Inch | N/A | Stainless Steel | EACH |
| 5/8 Inch | 5/8 Inch | 5/8 Inch | N/A | Steel | EACH |
| 5/8 Inch | 5/8 Inch | 5/8 Inch | N/A | Stainless Steel | EACH |
| 3/4 Inch | 3/4 Inch | 3/4 Inch | N/A | Steel | EACH |
| 3/4 Inch | 3/4 Inch | 3/4 Inch | N/A | Stainless Steel | EACH |
| 7/8 Inch | 7/8 Inch | 7/8 Inch | N/A | Steel | EACH |
| 1 Inch | 1 Inch | 1 Inch | N/A | Steel | EACH |
| 1 Inch | 1 Inch | 1 Inch | N/A | Stainless Steel | EACH |
| 1 1/4 Inch | 1 1/4 Inch | 1 1/4 Inch | N/A | Steel | EACH |
| 1 1/4 Inch | 1 1/4 Inch | 1 1/4 Inch | N/A | Stainless Steel | EACH |
| 1 1/2 Inch | 1 1/2 Inch | 1 1/2 Inch | N/A | Steel | EACH |
| 1 1/2 Inch | 1 1/2 Inch | 1 1/2 Inch | N/A | Stainless Steel | EACH |
Showing 1 - 19 of 19
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
