Noshok - 700 Series Gauge - SS Dry - Bottom Connection
Click Image to Zoom

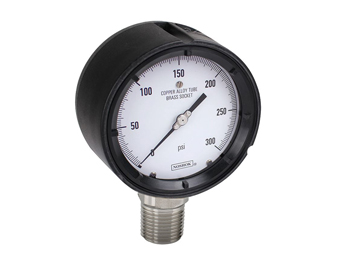

Noshok - 700 Series Gauge - SS Dry - Bottom Connection

Stainless Steel Dry Bottom Connection

Email this page to a friend
Showing 1 - 20 of 123
Part # Availability Price
45-740-15-PSI Backorder $144.26
45-740-15-PSI-1/4 Backorder $144.26
45-740-15-PSI/KPA Backorder $144.26
45-740-15-PSI/KPA-1/4 Backorder $144.26
45-740-15-PSI/BAR Backorder $144.26
45-740-15-PSI/BAR-1/4 Backorder $144.26
45-740-15-PSI/KG/CM2 Backorder $144.26
45-740-15-PSI/KG/CM2-1/4 Backorder $144.26
45-740-30-PSI-1/4 Backorder $144.26
45-740-30-PSI/KPA Backorder $144.26
45-740-30-PSI/KPA-1/4 Backorder $144.26
45-740-30-PSI/BAR Backorder $144.26
45-740-30-PSI/BAR-1/4 Backorder $144.26
45-740-30-PSI/KG/CM2 Backorder $144.26
45-740-30-PSI/KG/CM2-1/4 Backorder $144.26
45-740-60-PSI Backorder $144.26
45-740-60-PSI-1/4 Backorder $144.26
45-740-60-PSI/KPA Backorder $144.26
45-740-60-PSI/KPA-1/4 Backorder $144.26
45-740-60-PSI/BAR Backorder $144.26
Connection Size Gauge Sizes Pressure Range Scale Option UOM
1/2 NPT 4 1/2 inch 0 PSI to 15 PSI psi single scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 15 PSI psi single scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 15 PSI psi/kPa dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 15 PSI psi/kPa dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 15 PSI psi/bar dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 15 PSI psi/bar dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 15 PSI psi/kg/cm2 dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 15 PSI psi/kg/cm2 dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 30 PSI psi single scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 30 PSI psi/kPa dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 30 PSI psi/kPa dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 30 PSI psi/bar dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 30 PSI psi/bar dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 30 PSI psi/kg/cm2 dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 30 PSI psi/kg/cm2 dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 60 PSI psi single scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 60 PSI psi single scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 60 PSI psi/kPa dual scale EACH
1/4 NPT 4 1/2 inch 0 PSI to 60 PSI psi/kPa dual scale EACH
1/2 NPT 4 1/2 inch 0 PSI to 60 PSI psi/bar dual scale EACH
Showing 1 - 20 of 123

Turret style dry (field fillable) and liquid filled process gauges & with vacuum and compound ranges, and Brass or Stainless Steel case. Ideal for applications including Injection molding machines, Injection molding machines, Power generation , Utilities, Water & wastewater and more.

Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.



  • Turret style dry (field fillable) and liquid filled process gauges
  • Vacuum and compound ranges through 0 psi to 15,000 psi
  • 4-1/2" gauge sizes
  • Black Polypropylene safety case with solid front and blow-out back
  • 316 Stainless Steel or Brass wetted parts



Noshok Gauges



Noshok Gauges



Working Pressure Limitations

Dynamic Pressure

The working pressure should be limited to 60% of the dial range. Max. 0.9x full scale.

Static Pressure

The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range. Max. 1x full scale.

Short term max

1.5x full scale (<10,000 psi.).
