| Body Size | Material | Valved/Non-Valved | Max Pressure Range | Thread Size |
|---|---|---|---|---|
| 1/4 Inch | Steel | Valved | 6500 PSI | 1/8-27 NPTF |
| 1/4 Inch | Steel | Non-Valved | 6500 PSI | 1/4-18 NPTF |
| 1/4 Inch | Steel | Valved | 6500 PSI | 1/4-18 NPTF |
| 1/4 Inch | Steel | Valved | 6500 PSI | 7/16-20 UNF |
| 3/8 Inch | Steel | Non-Valved | 4500 PSI | 3/8-18 NPTF |
| 3/8 Inch | Steel | Valved | 4500 PSI | 3/8-18 NPTF |
| 3/8 Inch | Steel | Valved | 4500 PSI | 9/16-18 UNF |
| 1/2 Inch | Steel | Non-Valved | 4000 PSI | 1/2-14 NPTF |
| 1/2 Inch | Steel | Valved | 4000 PSI | 1/2-14 NPTF |
| 1/2 Inch | Steel | Valved | 4000 PSI | 3/4-16 UNF |
| 3/4 Inch | Steel | Non-Valved | 3500 PSI | 3/4-14 NPTF |
| 3/4 Inch | Steel | Valved | 3500 PSI | 3/4-14 NPTF |
| 3/4 Inch | Steel | Valved | 3500 PSI | 1-1/16-12 UNF |
| 1 Inch | Steel | Non-Valved | 2000 PSI | 1-11 1/2 NPTF |
| 1 Inch | Steel | Valved | 2000 PSI | 1-11 1/2 NPTF |
| 1 Inch | Steel | Valved | 2000 PSI | 1-5/16-12 UNF |
| 1 1/4 Inch | Steel | Non-Valved | 1750 PSI | 1-1/4-11-1/2 NPT |
| 1 1/4 Inch | Steel | Valved | 1750 PSI | 1-1/4-11-1/2 NPT |
| 1 1/2 Inch | Steel | Non-Valved | 1500 PSI | 1-1/2-11 1/2 NPTF |
| 1 1/2 Inch | Steel | Valved | 1500 PSI | 1-1/2-11 1/2 NPTF |

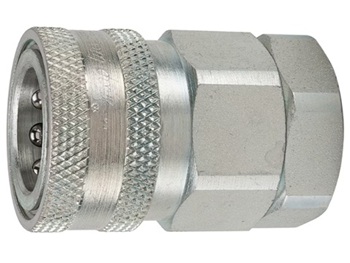

The H Series quick couplings, featuring the original Snap-tite design, have a long-standing reputation for reliable performance in hydraulic systems. Ideal for general-purpose fluid applications, the H Series offers the flexibility of single or double shut-off valving to meet a variety of operational needs. Available in a broad selection of sizes, materials, and end configurations, these couplings provide durable, leak-resistant connections across a wide range of industrial and mobile applications.
