	Product: Series 7390 E-Z Form EPDM-P Hose

Automatically Selected

»	Series: 7390
»	Inch/Metric: Inch
»	Media: Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions
»	Distinct Properties: UL UL94 V-0 Flame Resistance
»	Working Pressure Range: 150 psi, 10.3 bar, 1.03 Mpa
»	Cover Material: Black synthetic rubber greek corrugated
»	Material: Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
»	Hose Reinforcement Material: Multiple Braids or Plies of Textile with Wire Helix
»	UOM: Foot

AVAILABLE FILTERS

Inner Diameter

Cover Color

Click Image to Zoom

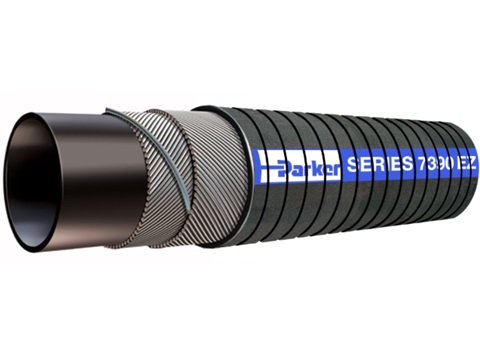

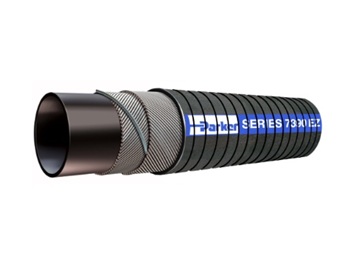

Series 7390 E-Z Form EPDM-P Hose

Series 7390 EPDM hose for DI water/glycol, 212°F, 150 psi, superior thermal sealing

Email this page to a friend

Showing 1 - 12 of 12

Part #	Availability	Price
7390-1500100-BLYL	Backorder	$38.50
7390-1500100-RLYL	Backorder	$38.50
7390-150100-BLYL	Backorder	$38.50
7390-150100-RLYL	Backorder	$38.50
7390-2000100-BLYL	443	$47.22
7390-2000100-RLYL	282	$47.22
7390-200100-BLYL	Backorder	$47.22
7390-200100-RLYL	Backorder	$47.22
7390-3000100-BLYL	Backorder	$64.65
7390-3000100-RLYL	Backorder	$64.65
7390-300100-BLYL	Backorder	$64.64
7390-300100-RLYL	Backorder	$64.64

Inner Diameter	Hose Reinforcement Material	Media	Cover Color	Cover Material	Material
1 1/2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
1 1/2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
1 1/2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
1 1/2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
2 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
3 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
3 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
3 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Blue layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black
3 inch	Multiple Braids or Plies of Textile with Wire Helix	Air, Coolants, Mild Chemicals, Water DI water and glycol based coolant solutions	Black Red layline	Black synthetic rubber greek corrugated	Ethylene Propylene Diene Monomer (EPDM) Peroxide cured, Black

Showing 1 - 12 of 12

Parker Series 7390 E-Z Form EPDM-P Hose delivers kink-free flexibility and full-flow performance for thermal management and industrial applications. Engineered with a peroxide-cured EPDM tube, it provides exceptional fluid purity, thermal resistance, and reliable sealing for DI water, glycol-based coolants, air, water, and mild chemicals. Its Greek corrugated synthetic rubber cover offers added flame resistance and durability, while the reinforced construction with textile braids and wire helix ensures strength, suction capability, and static dissipation. Qualified with EZ Series crimp couplings, Series 7390 supports secure, leak-resistant connections and meets SAE J20R2-D1 performance standards with a UL94 V-0 flame resistance rating.

7390 Product PDF
