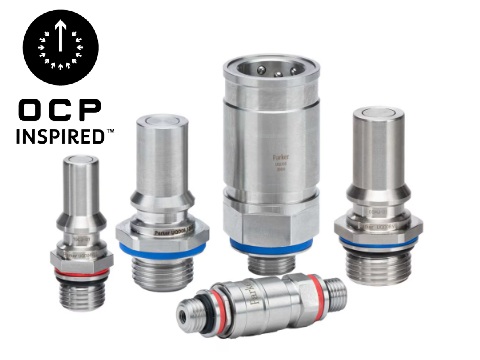

UQD Series Universal Quick Disconnect Coupling

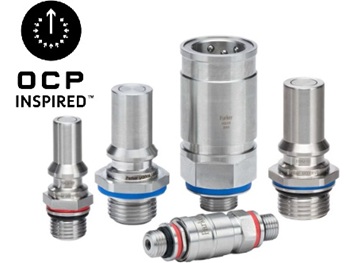

The Parker UQD Series flat-face quick disconnects are connectors designed for liquid cooling systems used in data centers, servers, and supercomputers.
Email this page to a friend
| Type | Threed Size | Body Size | Color |
|---|---|---|---|
| Male Thread | 7/16-20 UNF-2A | 1/8 Inch | |
| Push-Lok | 1/4 Inch | 1/4 Inch | |
| Male Thread | 7/16-20 UNF - 2A | 1/8 Inch | |
| Push-Lok | 1/4 Inch | 1/8 Inch | |
| Male Thread | G 1/4-19-A BSPP | 1/4 Inch | Blue |
| Male Thread | G 1/4-19-A BSPP | 1/4 Inch | Red |
| Push-Lok | 1/4 Inch | 1/4 Inch | |
| Male Thread | G 3/8-19-A BSPP | 1/4 Inch | Blue |
| Male Thread | G 3/8-19-A BSPP | 1/4 Inch | Red |
| Male Thread | 9/16-18 UNF-2A | 1/4 Inch | |
| Male Thread | 9/16-18 UNF-2A | 1/4 Inch | Blue |
| Male Thread | 9/16-18 UNF-2A | 1/4 Inch | Red |
| Push-Lok | 3/8 Inch | 1/4 Inch | |
| Push-Lok | 3/8 Inch | 1/4 Inch | Blue |
| Push-Lok | 3/8 Inch | 1/4 Inch | Red |
| Male Thread | G 1/4-19 BSPP | 1/4 Inch | Blue |
| Male Thread | G 1/4-19 BSPP | 1/4 Inch | |
| Male Thread | G 3/8-19 BSPP | 1/4 Inch | Blue |
| Male Thread | G 3/8-19 BSPP | 1/4 Inch | Red |
| Male Thread | 9/16-18 -6 ORB | 1/4 Inch |
Optimize Your Data Center Cooling with UQD Series Flat-Face Quick Disconnects
The UQD Series flat-face quick disconnects are engineered for high-performance liquid cooling in data centers, servers, and supercomputers. Designed with a flat-face interface, these quick disconnects ensure leak-free connections and easy maintenance, reducing downtime and improving system reliability. Built on the Open Compute Project (OCP) standard and NVIDIA Partner Network (NPN) approved, UQD connectors provide industry-standard compatibility, making them ideal for modern high-density computing environments.
Key Benefits:
- Reliable, leak-resistant liquid cooling connections
- Quick and easy installation for servers and supercomputers
- OCP standard and NVIDIA-approved for universal compatibility
- Optimized for data center and HPC cooling efficiency
Upgrade your liquid cooling systems with UQD Series quick disconnects and ensure efficient, safe, and high-performance thermal management for your critical computing infrastructure.
