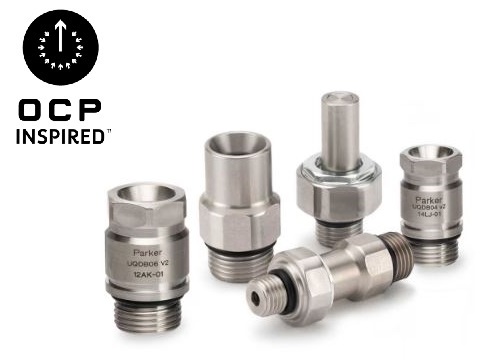

UQDB Series Universal Quick Disconnect Blindmate Couplings
The Parker UQDB Series flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.
Email this page to a friend
| Part # | Availability | Price | |
|---|---|---|---|
| UQDB-251-8MO | 75 | $47.81 | |
| UQDB-502-10MO | 47 | $93.31 | |
| UQDB2-251-8MO | Backorder | $51.16 | |
| UQDB2-371-10MO | Backorder | $56.87 | |
| UQDB2-501-12MO | Backorder | $68.75 |
| Type | Threed Size | Body Size |
|---|---|---|
| Female Coupler | 7/16 - 20 UNF | 1/4 Inch |
| Male Nipple | 7/8 - 14 UNF | 1/2 Inch |
| Female Coupler | 7/16 - 20 UNF | 1/4 Inch |
| Female Coupler | 3/4 - 16 UNF | 3/8 Inch |
| Female Coupler | 9/16 - 18 UNF | 1/2 Inch |
Parker UQDB Series Quick Disconnect Couplings are high-performance liquid cooling connectors for data centers, servers, supercomputers, and other high-performance computing (HPC) applications. Developed in collaboration with OCP (Open Compute Project) and approved by the NVIDIA Partner Network (NPN), UQDB quick disconnects provide a reliable connection solution for modern data center liquid cooling systems.
Designed for interoperability, Parker UQDB plugs and sockets are interchangeable with other OCP-approved UQDB quick disconnect couplings. The plug features a floating connection element that accommodates up to 1 mm of axial misalignment, helping simplify installation and connection within demanding liquid cooling architectures.
Parker UQDB stainless steel quick disconnect couplings are available in multiple sizes and port configurations for integration with rack manifolds, flexible cooling hoses, servers, IT equipment, and liquid-cooled data center infrastructure. Their durable stainless steel construction and EPDM seals are designed to support reliable operation in advanced thermal management and electronics cooling applications.
To help protect sensitive electronics and maintain cooling system cleanliness, Parker UQDB Series couplings are manufactured, assembled, and tested in a controlled clean-room environment. Final assemblies undergo helium leak testing for quality assurance and dependable leak-resistant performance.
UQDB Quick Disconnect Technical Specifications
- Series: Parker UQDB Series
- Product Type: Quick Disconnect Coupling
- Sizes: 02–08 (1/8"–1/2")
- Material: Stainless Steel
- Port Connection: Male ORB
- Seal Material: EPDM
- Axial Misalignment: Up to 1 mm
- Testing: End-of-line helium leak testing
Data Center Liquid Cooling Applications
- Data Center Liquid Cooling Systems
- AI Data Centers and Computing Infrastructure
- High-Performance Computing (HPC)
- Supercomputers
- Server Liquid Cooling
- Rack Manifolds
- Rackable Server Systems
- Flexible Cooling Hose Assemblies
- Information Technology Equipment
- Electronics Cooling Systems
UQDB Quick Disconnect Features & Benefits
- OCP interoperability: Designed to be globally interchangeable with other OCP-approved UQDB manufacturers.
- NVIDIA Partner Network approved: NPN-approved solution for advanced computing and data center cooling applications.
- Flush-face valve design: Helps minimize fluid loss during connection and disconnection while protecting sensitive electronic equipment.
- Low pressure drop: Supports efficient coolant flow, improved energy efficiency, and optimized liquid cooling system performance.
- Helium leak tested: End-of-line helium leak testing provides additional quality assurance for demanding data center applications.
- Clean manufacturing: Controlled manufacturing and assembly processes help minimize contamination within critical liquid cooling systems.
- Axial misalignment tolerance: Floating plug design accommodates up to 1 mm of axial misalignment for easier system integration.
