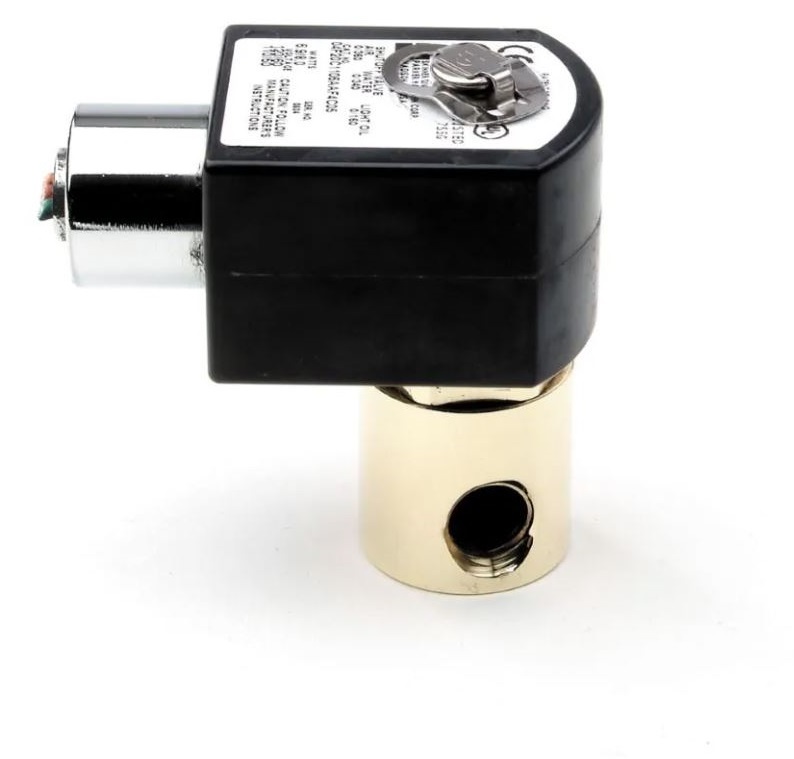

Parker Gold Ring Series 2-Way Valve 1/4 Inch
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

Parker Gold Ring Series 2-Way Valve 1/4 Inch

Parker 3-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 235 psi (AC) and flow factors up to 0.25 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Part #: 04F20O1108ACF4C15 Manufacturer: Parker - Fluid Control Division
Price/UOM: $238.77
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
Parker's 3-Way Normally Open, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification. Markets: • Commercial Equipment • Food & Beverage • Industrial Automation • Oil & Gas • Process Control • Transportation Features/ Benefits: • High Quality Standards of Skinner® and Gold Ring™ Brand • Modular Design • Long Life • Tight Shutoff Applications: • Single acting spring return cylinder control • Selection or diversion of process media • HVAC damper control • Instrumentation Equipment • Pneumatic positioning • Automatic dispensing equipment • Gas sampling • Small compressors • Water treatment • Air dryers • Analyzers and Diagnostic Equipment • Medical and Dental Equipment • Portable Welding Equipment • Spraying Equipment • Lubrication Equipment • Textile and Dry Cleaning Equipment • Irrigation Equipment
Email this page to a friend
Product Attributes
Orifice 1 Size: 1/8 inch
Body Material: Brass
Number of Ports: 2
Valve Type: 2-Way
Function: Normally Open (NO)
Port Size: 1/4 inch
Power Consumption: 11 W (AC)
Actuation Type: Direct Acting
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Maximum Fluid Temperature: 180 °F
Coil Specifications Met: Class F
Maximum Pressure Differential: 130 psi (AC)
Division: Fluid Control Division
Input Voltage: 220/50 to 240/60
Seal Material: NBR
Port Type: NPT
Minimum Pressure Differential: 0 psi
Media: Liquids and Gases
Minimum Fluid Temperature: 0 °F
Product Series: Gold Ring Series
Flow Coefficient 1: 0.35 Cv
Weight: 1.2 LB
UOM: EACH
Part Number Tags
04F20O1108ACF4C15
Product Resources
N/A
