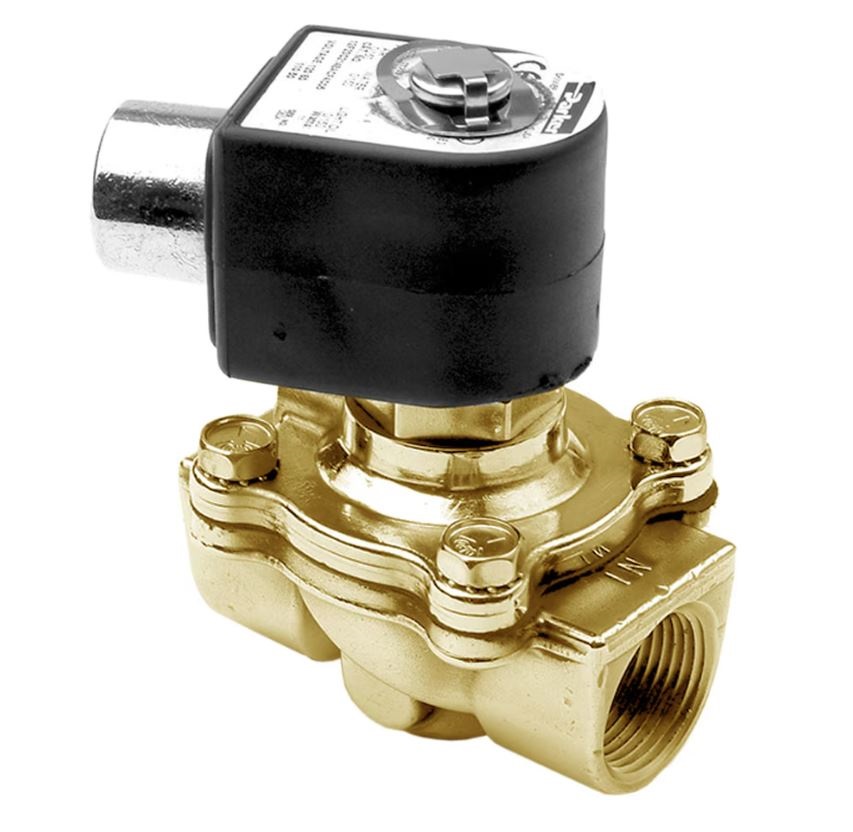

Click Image to Zoom
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.
Parker 22/23 Series - General Purpose Brass Solenoid Valve
This series is general superseded by G7 Series 22/23 Valves.
| Part #: 08F23C2140ACF4C05 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $261.74
|
Availability: 5 |
| UOM: EACH |
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Body Material: | Brass |
| Orifice Size: | 5/8 inch |
| Function: | Normally Closed |
| Port Size: | 1/2 inch |
| Power Consumption: | 11.0 W |
| Actuation Type: | Direct Lift |
| Coil Type: | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Maximum Fluid Temperature: | 180.0 °F |
| Maximum Ambient Temperature: | 130.0 °F |
| Maximum Pressure Differential: | 150.0 psi |
| Division: | Fluid Control Division |
| Input Voltage: | 120/60, 110/50 VAC |
| Seal Material: | NBR |
| Port Type: | NPT |
| Minimum Pressure Differential: | 0.0 psi |
| Media: | General Purpose |
| Insulation Class: | Class F |
| Ingress Protection Rating: | NEMA 4,4X |
| Preventive Maintenance Kit: | 08F23C2140ACFR |
| Main Flow Coefficient: | 4.0 Cv |
| Installation: | IOM 7321 |
| Specifications Met: | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC |
| Weight: | 2.3 LB |
| UOM: | EACH |
