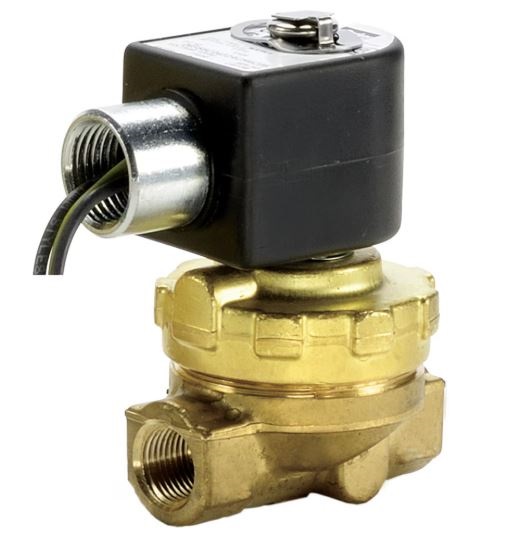

Parker 25 & S5 Hot Water & Steam
Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.
| Part #: 08F25CL332ACF4C05 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $370.94
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Gold Ring(TM) brand water & steam solenoid valves represent the “gold standard” in diverse industrial and commercial applications. A full-ported design and pivoted-edge diaphragm construction deliver high flow rates in a compact footprint with low pressure drop. These steam valves feature an integral stainless steel orifice for long life and durability. FCD has expanded this offering to include Lead-Free Brass (containing less than 0.25% lead), meeting the SDWA, Section 1417(d) requirements for brass.
Email this page to a friend
Product Attributes
| Body Material: | Lead-Free Brass |
| Orifice Size: | 1/2 inch |
| Valve Type: | 2-Way |
| Function: | Normally Closed (NC) |
| Port Size: | 1/2 inch |
| Power Consumption: | 11 W |
| Actuation Type: | Internal Pilot |
| Coil Type: | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Maximum Fluid Temperature: | 180 °F |
| Maximum Ambient Temperature: | 131 °F |
| Maximum Pressure Differential: | 235 psi |
| Division: | Fluid Control Division |
| Input Voltage: | 120/60 VAC |
| Seal Material: | EPDM |
| Port Type: | NPT |
| Minimum Pressure Differential: | 1.0 psi |
| Media: | Hot Water |
| Ingress Protection Rating: | NEMA 4 |
| Preventive Maintenance Kit: | 08F25CL332ACFR |
| Main Flow Coefficient: | 3.6 Cv |
| Installation: | IOM 7320 |
| Specifications Met: | EMC |
| Weight: | 2.3 LB |
| UOM: | EACH |
Part Number Tags
08F25CL332ACF4C05
