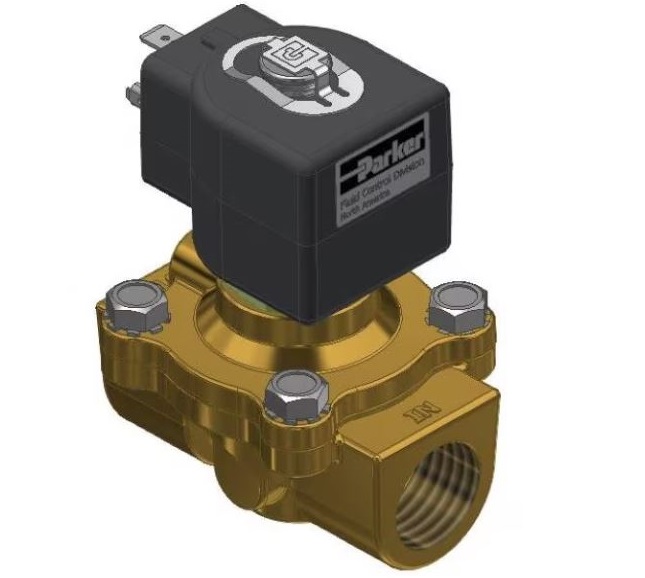

Parker 22/23 Series - General Purpose Brass Solenoid Valve - DIN Coil
This series is general superseded by G7 Series 22/23 Valves.
| Part #: 12F23O2248A3FPH75 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $573.65
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Body Material: | Brass |
| Orifice Size: | 3/4 inch |
| Function: | Normally Open |
| Port Size: | 3/4 inch |
| Power Consumption: | 11.5 W |
| Actuation Type: | Direct Lift |
| Coil Type: | DIN 43650A / ISO 4400 |
| Maximum Fluid Temperature: | 150.0 °F |
| Maximum Ambient Temperature: | 77.0 °F |
| Maximum Pressure Differential: | 125 (80 Light Oil) psi |
| Division: | Fluid Control Division |
| Input Voltage: | 12.0 VDC |
| Seal Material: | FKM |
| Port Type: | NPT |
| Minimum Pressure Differential: | 0.0 psi |
| Media: | General Purpose |
| Insulation Class: | Class F |
| Ingress Protection Rating: | NEMA 4,4X |
| Preventive Maintenance Kit: | 12F23O2248A3FR |
| Main Flow Coefficient: | 5.0 Cv |
| Installation: | IOM 7321 |
| Specifications Met: | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC |
| Weight: | 2.6 LB |
| UOM: | EACH |
Part Number Tags
12F23O2248A3FPH75
