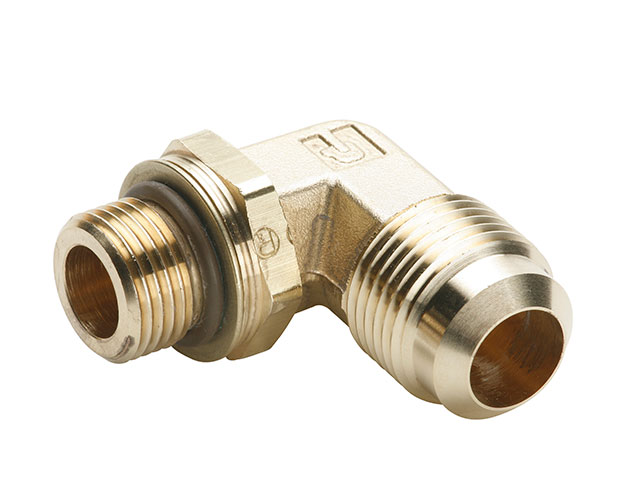

Flare Elbow to SAE Straight Thread 1495F
Parker 45° Flare Brass Flare Elbow to SAE Straight Thread - Ref. SAE J512 and J513
| Part #: 1495F-12-12 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $61.94
|
Availability: 5 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/4 Inch |
| Material: | Brass |
| Thread 2: | 1 1/16-12 SAE |
| UOM: | EACH |
| Thread 1: | 1 1/16-14 UN/UNF |
| Inch/Metric: | Inch |
| Pressure Rating: | 1400 PSI |
| Configuration Type: | Flare to Male |
| Configuration Sub-Type: | Male Elbow 90° |
| Series: | 45° Flare |
| Outer Diameter 1 Inch/mm: | Inch |
| Thread 2 Type: | SAE |
| Thread 1 Type: | UN/UNF |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -65°F to +250°F |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010203 |
| Body Shape: | Forged |
Part Number Tags
1495F-12-12
