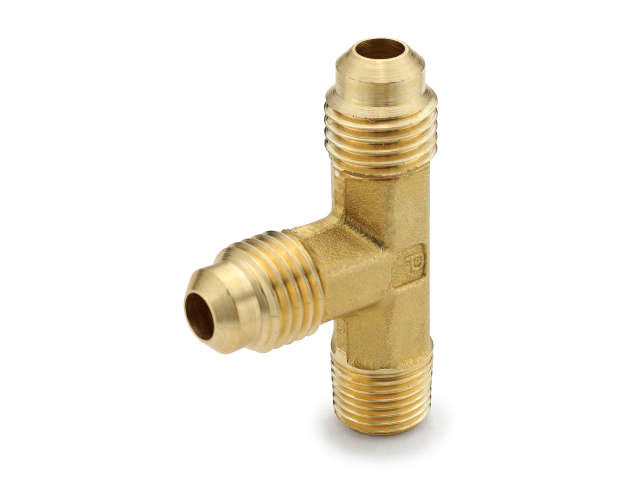

Male Run Tee 151F
Parker 45° Flare Brass Male Run Tee - Ref. SAE J512 and J513 010424
| Part #: 151F-8-6 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $25.60
|
Availability: 8 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/2 Inch |
| Outer Diameter 2: | 1/2 Inch |
| Thread 3: | 3/8 NPT |
| Material: | Brass |
| Thread 2: | 3/4-16 UN/UNF |
| UOM: | EACH |
| Thread 1: | 3/4-16 UN/UNF |
| Inch/Metric: | Inch |
| Pressure Rating: | 750 PSI |
| Configuration Type: | Flare to Male |
| Configuration Sub-Type: | Male Run Tee |
| Series: | 45° Flare |
| Outer Diameter 2 Inch/mm: | Inch |
| Outer Diameter 1 Inch/mm: | Inch |
| Thread 1 Type: | UN/UNF |
| Thread 3 Type: | NPT |
| Thread 2 Type: | UN/UNF |
| Operating Temperature: | -65°F to +250°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010424 |
| Body Shape: | Forged |
Part Number Tags
151F-8-6
