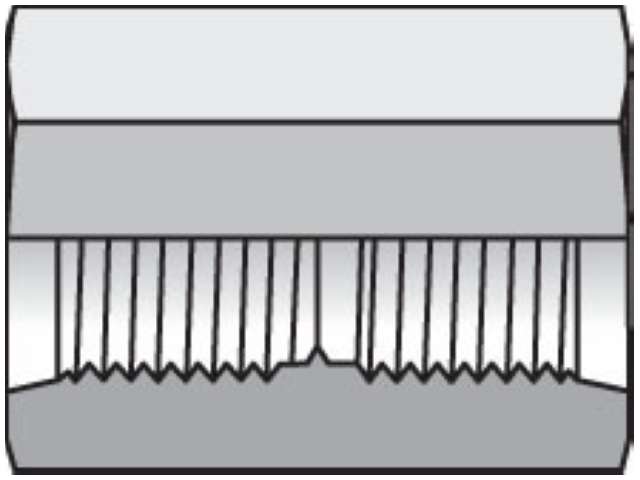

Pipe & Port Coupling G5HG5
Straight Thread Coupling Female SAE / Female SAE
| Part #: 16 G5HG5-S | Manufacturer: Parker - Tube Fittings Division |
|
Price/UOM: $54.68
|
Availability: 8 |
| UOM: EACH |
Pipe Fittings and Port Adapters utilize many different thread types including: NPT, NPTF, BSPT, BSPP, SAE UN/UNF, and Metric.
Email this page to a friend
Product Attributes
| End 1: | 1 5/16-12 UN/UNF-2B |
| End 2: | 1 5/16-12 UN/UNF-2B |
| Material: | Steel |
| UOM: | EACH |
| Series: | Pipe & Port |
| Tube Fitting/Adapter Type: | Pipe & Port |
| Configuration Type: | Coupling |
| Configuration Sub-Type: | Straight Thread Coupling Female SAE / Female SAE |
| Inch/Metric: | Inch |
| End 1 Type: | UN/UNF-2B |
| Parker Division: | Tube Fitting |
| End 2 Type: | UN/UNF-2B |
| Parker Group: | Fluid Connector |
Part Number Tags
16 G5HG5-S
