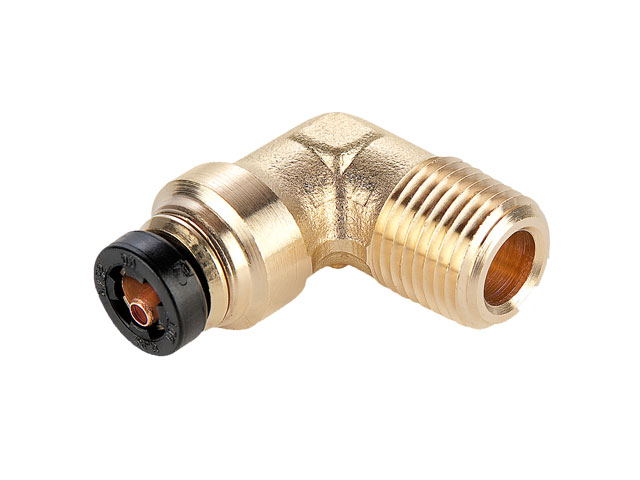

PTC Metal 169PTCNS
Male Elbow 90° - Push-to-Connect Transportation Fitting
| Part #: 169PTCNS-3-2 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $22.63
|
Availability: 1 |
| UOM: EACH |
Parker's PTC Metal Series Male Elbow 90° is a push-to-connect fitting that meets SAE and D.O.T. specifications.
Designed for all D.O.T truck and trailer applications, Parker PTC fittings reduce assembly time versus
compression style fittings.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/16 Inch |
| Material: | Brass |
| Thread 1: | 1/8 NPT |
| UOM: | EACH |
| Series: | PTC Metal |
| Pressure Range: | Up to 250 PSI |
| Configuration Type: | Tube to Male |
| Configuration Sub-Type: | Male Elbow 90° |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -40°F to +200°F |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls |
| SAE Compliance: | SAE J1131 & SAE J2494-3 and D.O.T. FMVSS571.106 |
