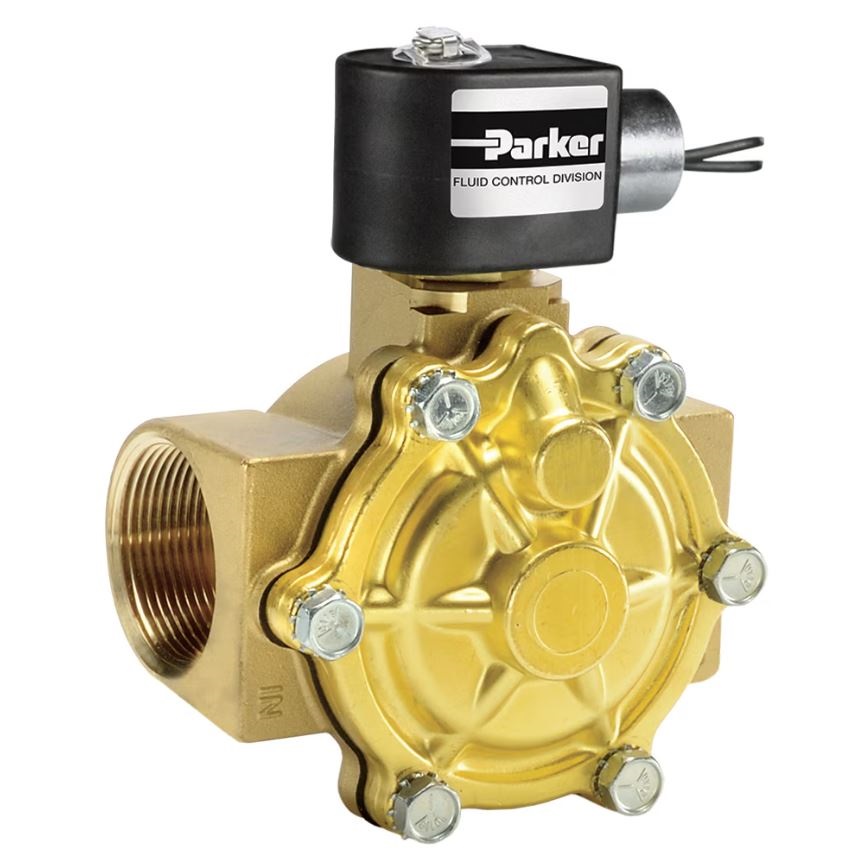

Parker 24 Series - High Flow General Purpose Solenoid Brass Valve
High Flow General Purpose Solenoid Valves
| Part #: 24F24O2180ACF4C01 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $982.72
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
High Flow General Purpose Solenoid Valves
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Body Material: | Brass |
| Orifice Size: | 1-1/4 inch |
| Function: | Normally Open |
| Port Size: | 1-1/2 inch |
| Power Consumption: | 11.0 W |
| Actuation Type: | Internally Piloted |
| Maximum Fluid Temperature: | 180.0 °F |
| Maximum Ambient Temperature: | 130.0 °F |
| Maximum Pressure Differential: | 125.0 psi |
| Division: | Fluid Control Division |
| Input Voltage: | 24/60 VAC |
| Seal Material: | NBR |
| Coil Type: | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Port Type: | NPT |
| Minimum Pressure Differential: | 5.0 psi |
| Media: | General Purpose |
| Insulation Class: | Class F |
| Ingress Protection Rating: | NEMA 4,4X |
| Preventive Maintenance Kit: | 24F24O2180ACFR |
| Main Flow Coefficient: | 22.5 Cv |
| Installation: | IOM 7235 |
| Specifications Met: | CE - Low Voltage, EMC |
| Weight: | 6 LB |
| UOM: | EACH |
