Parker H Series Solenoid Valves
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

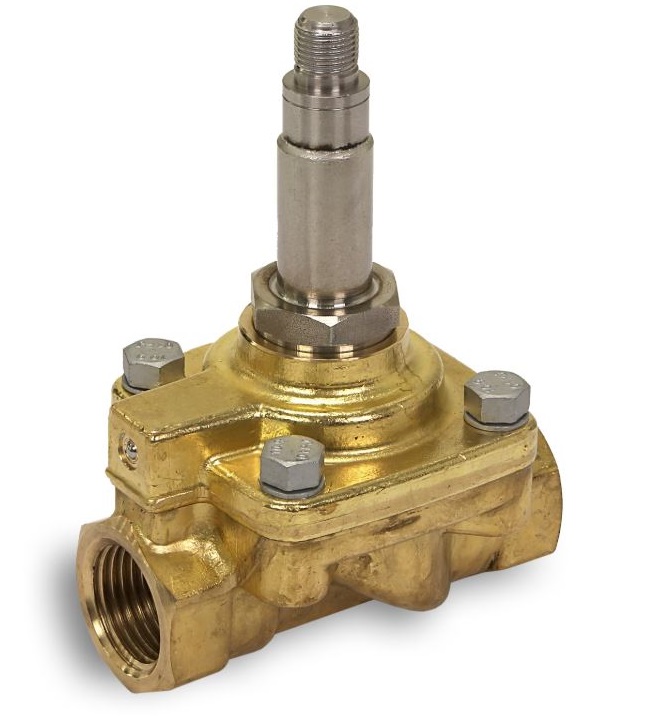

Parker H Series Solenoid Valves

H Series is a indirect acting solenoid valves, normally closed and normally open, from 1/4" to 3/4", offering extremely robust design and different flow rates.

Part #: 322H35 Manufacturer: Parker - Fluid Control Division
Price/UOM: $615.35
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
The H Series indirect acting solenoid valves range includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets. The range is designed to achieve the best in class robustness thanks to the reinforced diaphragm design and stainless steel operator rated for million of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications, dealing with high operating pressures and critical media such as air or oils. Markets: - Industrial - Process Applications: - Compressors and air treatment - PET Blowing - Oil shut off - Carwash Features/Benefits: - Wide range of electrical parts including VDE, UL and ATEX approvals - High operating pressure - Long lyfe expectancy
Email this page to a friend
Product Attributes
Division: Fluid and Climate Controls Europe
Body Material: CW 617N UNI EN 12165
Port Type: Pipe mounting
Orifice Size: 15 mm
Valve Type: 2/2-Way
Minimum Fluid Temperature: -10 °C
Flow Coefficient 2: 3.6 m3/hour
Actuation Type: Pilot Operated
Flow Coefficient 1: 60 l/min
Seat Material: Stainless Steel
Minimum Operating Pressure: 1.5 bar
Weight: 0.66 KG
UOM: EACH
Part Number Tags
322H35
