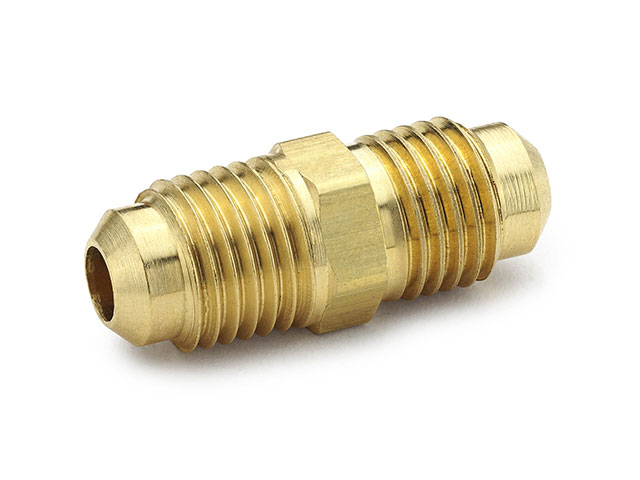

Union 42F
Parker 45° Flare Brass Union - Ref. SAE J512 and J513 010101
| Part #: 42F-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $2.08
|
Availability: 2,255 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Material: | Brass |
| UOM: | EACH |
| Thread 1: | 7/16-20 UN/UNF |
| Configuration Type: | Flare to Flare |
| Pressure Rating: | 1200 PSI |
| Series: | 45° Flare |
| Configuration Sub-Type: | Union |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | UN/UNF |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -65°F to +250°F |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010101 |
Part Number Tags
42F-4
