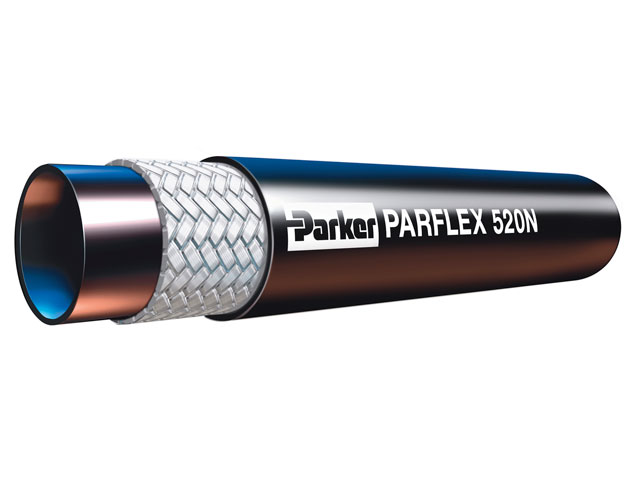

520N Series
High Pressure Thermoplastic Hydraulic Hose
| Part #: 520N-6 | Manufacturer: Parker - Parflex Division |
|
Price/UOM: $8.29
|
Availability: 7,555 |
| UOM: FOOT |
General Hydraulic Hose meets or exceeds SAE 100R8 Ideal in Hot Water applications not recommended for use over-the -sheave ( pulley system) applications
Email this page to a friend
Product Attributes
| Inner Diameter: | 0.375 Inch |
| Material: | Thermoplastic |
| Working Pressure: | 4000 PSI (280 bar) |
| UOM: | FOOT |
| Mating Fitting Series: | 55 |
| Series: | 520N |
| Hose Pressure Range: | High |
| Inch/Metric: | Inch |
| Application: | Hydraulic |
| Working Pressure Range: | 4000 to 4999 PSI (276 to 345 bar) |
| Inner Diameter Inch/mm: | Inch |
| Parker Group: | Fluid Connector |
| Parker Division: | Parflex |
| Specification: | SAE 100R10 |
Part Number Tags
520N-6
