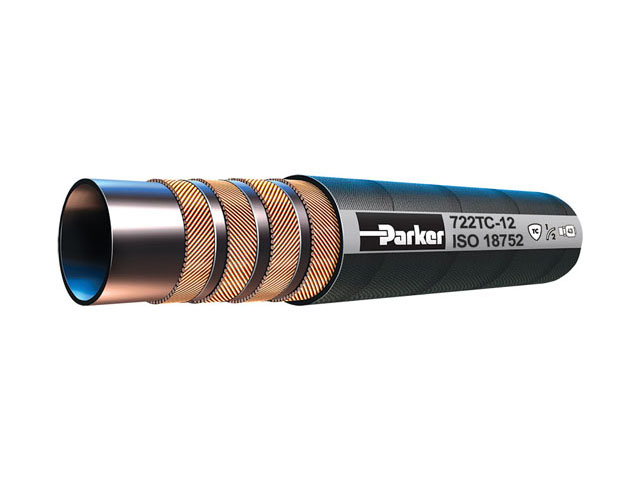

GlobalCore 722TC Series
High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose
| Part #: 722TC-12 | Manufacturer: Parker - Hose Products Division |
|
Price/UOM: $20.80
|
Availability: 3,111 |
| UOM: FOOT |
Parker’s Global Core 722TC hose provides 4,000 psi (28 MPa) constant working pressure in all sizes. 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications. 450 times the abrasion resistance compared to standard rubber cover hose. ½ bend radius of 100R12 hose. Exceeds ISO 18752 performance specification.
Email this page to a friend
Product Attributes
| Inner Diameter: | 0.75 Inch |
| Material: | Tough Cover |
| Working Pressure: | 4,000 psi (28 MPa) |
| UOM: | FOOT |
| Mating Fitting Series: | 43 |
| Application: | Hydraulic |
| Inch/Metric: | Inch |
| Trade Name: | GlobalCore |
| Hose Pressure Range: | High |
| Series: | 722TC |
| Minimum Bend Radius: | 4 3/4 Inch |
| Distinct Properties: | Tough Cover Constant Pressure 4000 PSI |
| Working Pressure Range: | 4000 PSI (276 bar) |
| Operating Temperature: | -40°F to +257°F (-40°C to +125°C) |
| Specification: | ISO 18752 |
| Mating End Fitting Series: | 43 |
| Inner Diameter Inch/mm: | Inch |
| Parker Group: | Fluid Connector |
| Parker Division: | Hose Products |
| ISO 18752 Performance: | CC |
| Specification: | ISO 18752 |
| Application: | Hydraulic |
