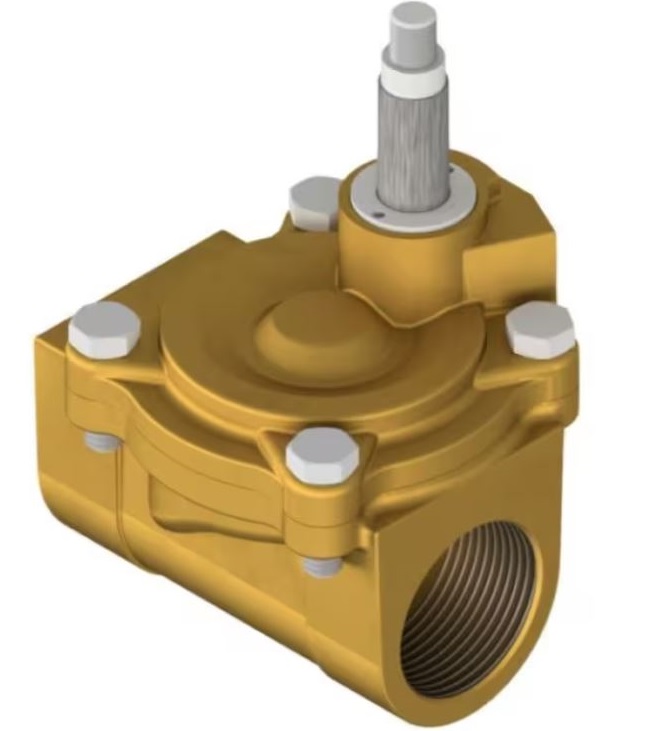

Parker TS0 - Piston Steam Valves
Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.
| Part #: 73218BN5VTS0N0C222P3 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $623.71
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
The unique piston style design of these high pressure, high flow steam valves deliver uptime and long life at elevated pressures and temperatures, where competive products fall flat. These time-tested valves are the “go to” solution for demanding steam applications.
Email this page to a friend
Product Attributes
| Body Material: | Brass |
| Orifice Size: | 5/8 inch |
| Valve Type: | 2-Way |
| Function: | Normally Closed (NC) |
| Port Size: | 3/4 inch |
| Power Consumption: | 10 W |
| Actuation Type: | Internal Pilot |
| Coil Type: | 1/2" NPT Conduit w/ 18" Leads |
| Maximum Fluid Temperature: | 353 °F |
| Maximum Ambient Temperature: | 77 °F |
| Division: | Fluid Control Division |
| Input Voltage: | 110/50 VAC |
| Seal Material: | PTFE |
| Port Type: | NPT |
| Minimum Pressure Differential: | 3 psi |
| Media: | Hot Water |
| Insulation Class: | H (180°C) |
| Ingress Protection Rating: | NEMA 4X |
| Preventive Maintenance Kit: | 7K823 |
| Main Flow Coefficient: | 4.5 Cv |
| Installation: | IOM 7217 |
| Specifications Met: | CSA listed General Purpose Valve; CE - Low Voltage |
| Maximum Steam Pressure: | 125 psi |
| Weight: | 2.6 LB |
| UOM: | EACH |
