Parker 2-Way Brass Valve DIN Mechanical
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

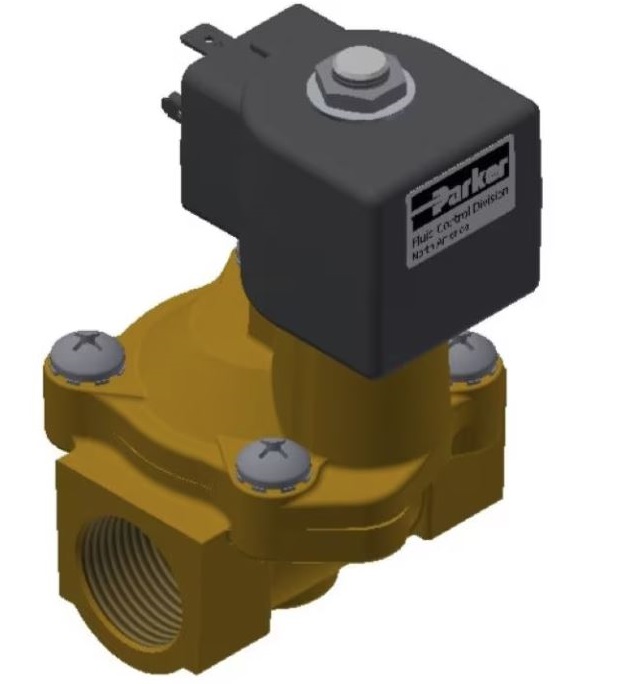

Parker 2-Way Brass Valve DIN Mechanical

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

Part #: 73218BN87N00N0D100P3 Manufacturer: Parker - Fluid Control Division
Price/UOM: $890.13
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
Parker's 2-Way Normally Closed 1-1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification. Markets: • Commercial Equipment • Food & Beverage • Industrial Automation • Oil & Gas • Process Control • Transportation Features/ Benefits: • High Quality Standards of Skinner® and Gold Ring™ Brand • Modular Design • Long Life • Tight Shutoff Applications: • Instrumentation Equipment • Analyzers and Diagnostic Equipment • Medical and Dental Equipment • Portable Welding Equipment • Spraying Equipment • Lubrication Equipment • Beverage Dispensing & Vending machines • Oil Burners • Humidification and Misting Equipment • Mobile Fuel Shut Off • Textile and Dry Cleaning Equipment • Commercial Dishwashers • Commercial Laundry and Dryers • Air Horns • Pneumatic Fan Clutch • Irrigation Equipment
Email this page to a friend
Product Attributes
Orifice 1 Size: 1-1/4 inch
Body Material: Brass
Number of Ports: 2
Valve Type: 2-Way
Function: Normally Closed (NC)
Port Size: 1-1/2 inch
Power Consumption: 10 W
Actuation Type: Mechanical
Coil Type: DIN Form A, Class F
Product Series: 7000 Series
Coil Specifications Met: Class F
Seal Material: NBR
Maximum Fluid Temperature: 185 °F
Division: Fluid Control Division
Minimum Pressure Differential: 5 psi
Weight: 7.5 LB
Port Type: NPT
Flow Coefficient 1: 22.5 Cv
Maximum Pressure Differential: 125 psi
Minimum Fluid Temperature: 0 °F
Media: General Purpose for Air
Input Voltage: 110/50-120/60
UOM: EACH
Part Number Tags
73218BN87N00N0D100P3
Product Resources
N/A
