Parker 2-Way Brass Valve DIN Coil
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

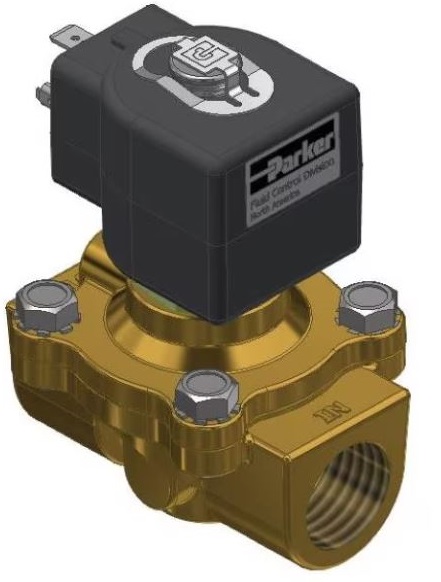

Parker 2-Way Brass Valve DIN Coil

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Part #: 73228BN4UN00N0D100C2 Manufacturer: Parker - Fluid Control Division
Price/UOM: $457.10
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
Parker's 2-Way Normally Closed 3/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification. Markets: • Commercial Equipment • Food & Beverage • Industrial Automation • Oil & Gas • Process Control • Transportation Features/ Benefits: • High Quality Standards of Skinner® and Gold Ring™ Brand • Modular Design • Long Life • Tight Shutoff Applications: • Instrumentation Equipment • Analyzers and Diagnostic Equipment • Medical and Dental Equipment • Portable Welding Equipment • Spraying Equipment • Lubrication Equipment • Beverage Dispensing & Vending machines • Oil Burners • Humidification and Misting Equipment • Mobile Fuel Shut Off • Textile and Dry Cleaning Equipment • Commercial Dishwashers • Commercial Laundry and Dryers • Air Horns • Pneumatic Fan Clutch • Irrigation Equipment
Email this page to a friend
Product Attributes
Orifice 1 Size: 7/16 inch
Body Material: Brass
Number of Ports: 2
Valve Type: 2-Way
Function: Normally Open (NO)
Port Size: 1/2 inch
Power Consumption: 10 W (DC)
Actuation Type: Mechanical
Coil Type: DIN Form A, Class F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: Class F
Maximum Pressure Differential: 150 psi (DC)
Division: Fluid Control Division
Input Voltage: 24.0 VDC
Seal Material: NBR
Port Type: NPT
Minimum Pressure Differential: 5 psi
Media: General Purpose for Air
Minimum Fluid Temperature: 0 °F
Product Series: 7000 Series
Flow Coefficient 1: 4 Cv
Weight: 2 LB
UOM: EACH
Part Number Tags
73228BN4UN00N0D100C2
Product Resources
N/A
