811 Series
Low Pressure Rubber 1/2 SAE Minimum Bend Radius Hydraulic Suction And Return Hose
| Part #: 811-20 | Manufacturer: Parker - Hose Products Division |
|
Price/UOM: $21.09
|
Availability: 2,630 |
| UOM: FOOT |

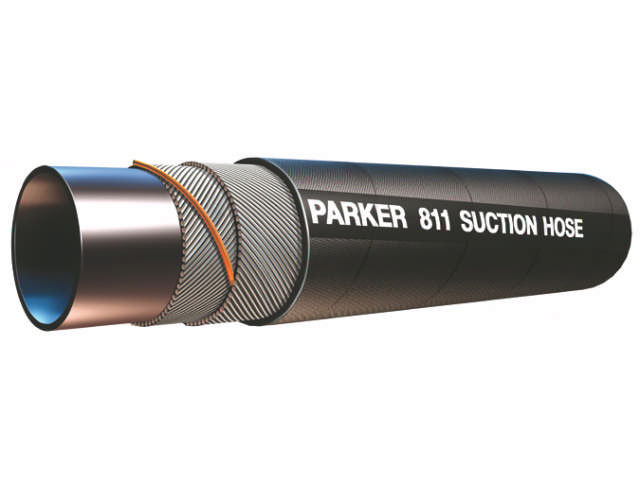

Suction and return line hose with 1/2 SAE minimum bend radius for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Multiple layers of fiber spiral and one helical wire. Cover: Synthetic rubber.
Email this page to a friend
Product Attributes
| Inner Diameter: | 1.25 Inch |
| Working Pressure: | 50 PSI (3 bar) |
| Material: | Rubber |
| Mating Fitting Series: | 81, 88 |
| UOM: | FOOT |
| Series: | 811 |
| Hose Pressure Range: | Low |
| Inch/Metric: | Inch |
| Distinct Properties: | 1/2 SAE Minimum Bend Radius |
| Application: | Hydraulic Suction And Return |
| Working Pressure Range: | < 100 PSI (7 bar) |
| Mating End Fitting Series: | 81, 88 |
| Inner Diameter Inch/mm: | Inch |
| Parker Group: | Fluid Connector |
| Parker Division: | Hose Products |
Part Number Tags
811-20
