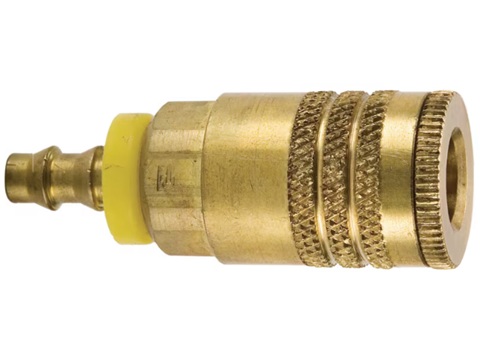

50 Series Brass Coupler - Push-lok Hose Barb
50 Series Pneumatic Manual Connect ARO Interchange Brass Push - Lok Hose Narb
| Part #: B50-3BP | Manufacturer: Parker - Quick Coupling Division |
|
Price/UOM: $28.38
|
Availability: 485 |
| UOM: EACH |
Parker 50 Series Quick Disconnect Couplers are interchangeable with ARO’s 210 series couplings and have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
Product Attributes
| Body Size: | 1/4 Inch |
| Hose I.D.: | 1/4 |
| Material: | Brass |
| Max Pressure Range: | 300 PSI |
| Nipple/Coupler: | Coupler |
| Configuration Type: | Push-lok Hose Barb |
| Series: | 50 Series |
Part Number Tags
B50-3BP
