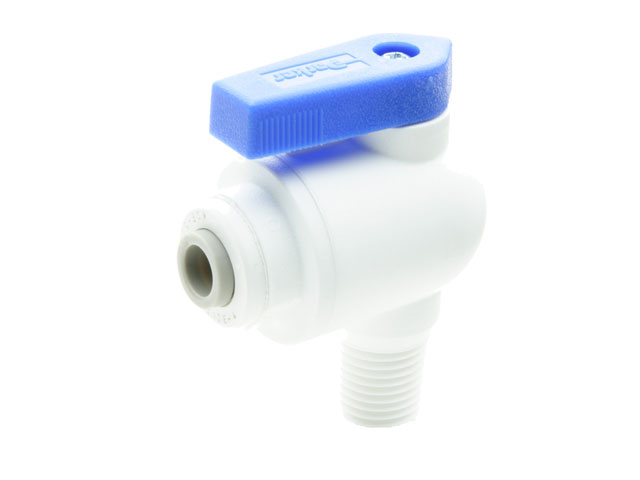

Polypropylene Ball Valve - VME
Male Elbow 90° TrueSeal Ball Valve
| Part #: PP6VME6-MG | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $7.82
|
Availability: 3 |
| UOM: EACH |
Polypropylene Male Elbow 90° Ball Valve with TrueSeal push-in connections. Their corrosion-resistant, all-plastic design makes them ideal for water filtration units, coffee and beverage machines and a wide variety of other fluid applications.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/8 Inch |
| Outer Diameter 2: | 3/8 Inch |
| Material: | Polypropylene |
| UOM: | EACH |
| Thread 1: | 3/8 NPT |
| Configuration Type: | Tube to Male |
| Series: | Polypropylene Ball Valve |
| Pressure Range: | Up to 150 PSI |
| Configuration Sub-Type: | Male Elbow 90° |
| Flow Diameter: | 0.25 |
| Valve Type: | Ball Valve |
| Outer Diameter 2 Inch/mm: | Inch |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Material - Seal: | EPDM |
| Operating Temperature: | 0°F to 225°F |
| Application: | Water, Beverages, Food, CO2 |
| Specific Application: | Meets FDA and NSF-51 requirements |
Part Number Tags
PP6VME6-MG
