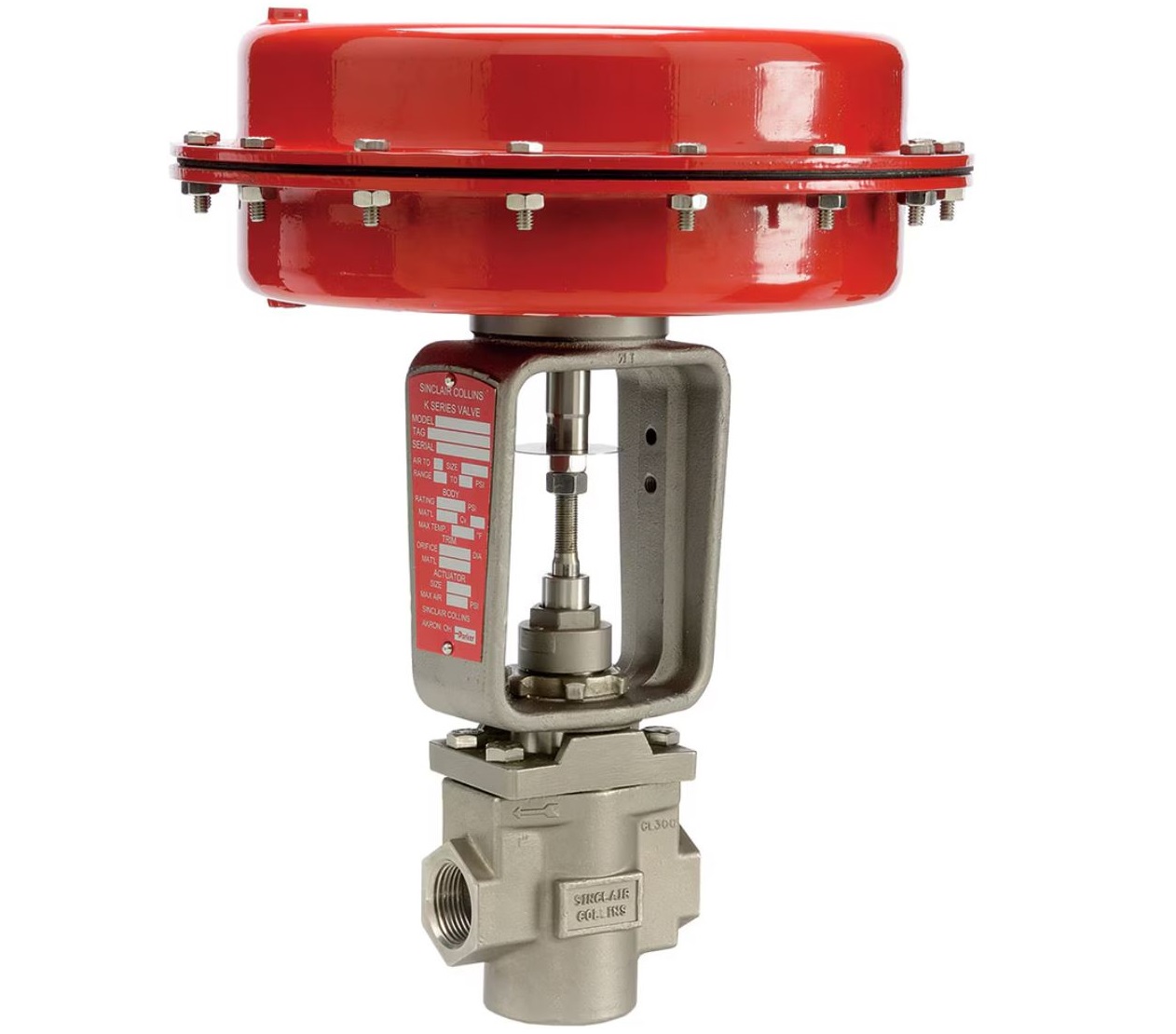

Parker 2-Way Valve SINCOL-K Stainless Steel
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

Parker 2-Way Valve SINCOL-K Stainless Steel

Parker 2-Way Sinclair Collins K Series, Normally Open, 1" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping.

Part #: K22-41114000 Manufacturer: Parker - Fluid Control Division
Price/UOM: $3,742.13
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
Old part number K2241114000 is now K22-41114000
Parker 2-Way Sinclair Collins K Series, Normally Open, 1" Process Control Valves are ideally suited for a variety of applications requiring the control of steam, gas, liquids or chemicals. Constructed of highly durable bronze or 316 stainless steel, the K Series valves provide operating pressures of 250 psi and can handle very high fluid temperatures. Markets: • Tire Manufacturing • Industrial Automation • Process Control • Food Processing Features/ Benefits: • Reduced Valve Height • Serviceability in the Field Without Removal from the Installation • Field Reversible from “Air-to-Open” to “Air-to-Close” • Ease of Maintenance and Uniform Thrust Throughout the Valve Stroke • Longer Service Life • Rugged Construction • Adjustability of Operating Pressures Applications: • Chemical Process Technology • Tire Press Temperature Control • Water Technology & Treatment • Cooling Systems and Exchange Heaters • Industrial Air Dryers • Pulp and Paper Water Applications • Mining, Cement, Concrete Systems Water Applications • Industrial Handling of Aggressive Fluids • Industrial Food and Beverage Processing
Email this page to a friend
Product Attributes
Orifice 1 Size: 1.06 inch
Body Material: 316 Stainless Steel
Number of Ports: 2
Valve Type: 2-Way
Function: Normally Closed
Port Size: 1 inch
Actuation Type: Pneumatic Operated
Actuator Size: 64
Maximum Fluid Temperature: 450 °F
Maximum Pressure Differential: 250 psi
Division: Fluid Control Division
Seal Material: Stainless Steel
Port Type: NPTF
Media: Valves for steam, air, neutral gasses and liquids
Minimum Fluid Temperature: -40 °F
Product Series: Sinclair Collins K Series
Flow Coefficient 1: 13 Cv
Maximum Pilot Pressure: 35 psi
Flow Characteristic: Linear
Weight: 29 LB
UOM: EACH
