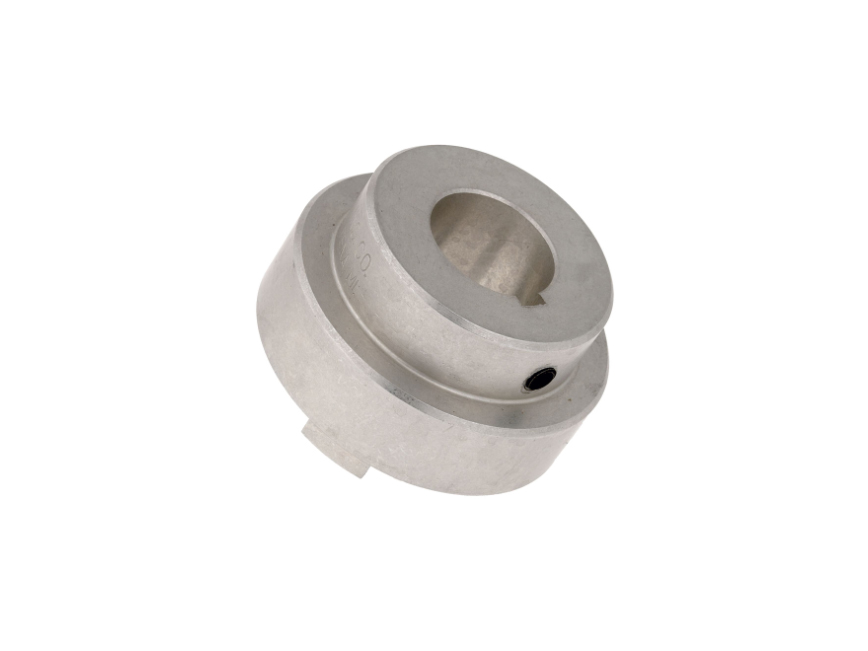

Magnaloy Coupling - Model M200 - Standard
200 Model Standard Round Coupling Bore Hub (Coupling Insert Not Included)
| Part #: M20010808 | Manufacturer: Magnaloy Coupling Co. |
|
Price/UOM: $28.80
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Coupling Insert is not included.
200 Series Magnaloy coupling is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76% lighter than cast iron and 36% lighter than aluminum units and they’re stronger than either.
This item: Magnaloy Model M200 Coupling Insert bought together with 200 Series Magnaloy flexible drive coupling.
Product Attributes
| Bore Size: | 1 1/4 inch |
| KeyWay Size: | 1/4 inch |
| Material: | Magnesium Titanium |
| UOM: | EACH |
| Standard/Metric: | Standard |
| Family Name: | Flexible Drive Couplings |
| Coupling Series: | Model 200 |
| Length Through Bore: | 1.1 inch |
| Outside Diameter: | 2.9 inch |
| Basic Insert Number: | M270 |
