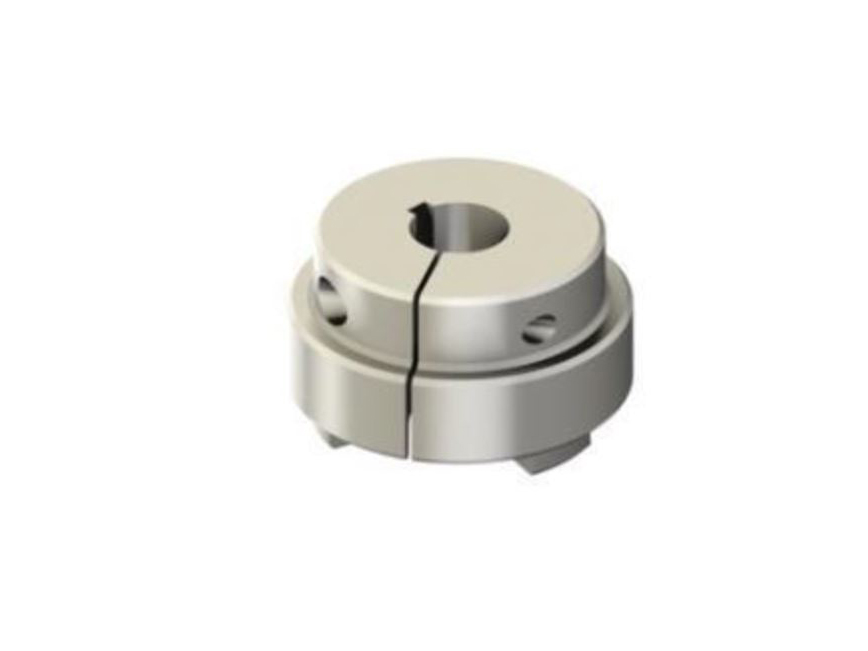

Magnaloy Coupling - Model M400 - Standard - With Clamp
400 Model Standard Round Coupling Bore Hub With Clamp (Coupling Insert Not Included)
| Part #: M40010808C | Manufacturer: Magnaloy Coupling Co. |
|
Price/UOM: $88.20
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Coupling Insert is not included.
400 Series Magnaloy coupling is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76% lighter than cast iron and 36% lighter than aluminum units and they’re stronger than either.
This item: Magnaloy Model M400 Coupling Insert bought together with 400 Series Magnaloy flexible drive coupling.
Product Attributes
| Bore Size: | 1 1/4 inch |
| KeyWay Size: | 1/4 inch |
| Material: | Magnesium Titanium |
| UOM: | EACH |
| Standard/Metric: | Standard |
| Family Name: | Flexible Drive Couplings |
| Coupling Series: | Model 400 |
| Length Through Bore: | 1.52 inch |
| Outside Diameter: | 3.98 inch |
| Basic Insert Number: | M470 |
