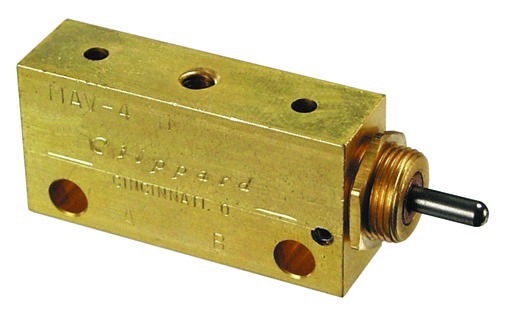

Stem Spool Valve - MAV Series
4-Way Normally-Closed Valve
| Part #: MAV-4 | Manufacturer: Clippard |
|
Price/UOM: $27.61
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
The MAV series are #10-32 ported 2-way, 3-way and 4-way valves that change their flow path when the stem is either depressed or released. The 2-way and 3-way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions. The 4-way valves are typically used to control a double acting air cylinder. We offer a wide range of pneumatic and mechanical valves actuators that work with all Clippard stem valves.
Email this page to a friend
Product Attributes
| Function: | 4-Way Valve |
| Toggle: | Spring Return |
| UOM: | EACH |
| Voltage: | 12 VDC |
| Valve Type: | Stem |
| Series: | MAV |
| Porting: | Normally-Closed Valve |
| Pressure Range: | Vac. To 25 psig |
| Inlet: | #10-32 |
| Outlet: | #10-32 |
| Air Flow: | 5 scfm @ 50 psig; 8.5 scfm @ 100 psig |
