Micro Ball Valve

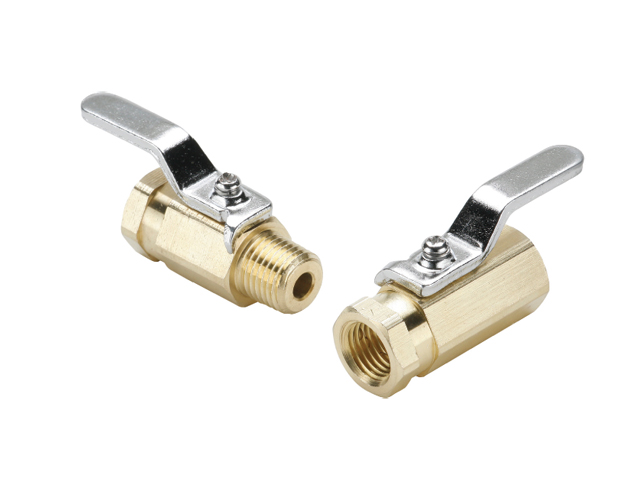

Parker Micro Ball Valve
| Part #: MV709-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $18.13
|
Availability: 11 |
| UOM: EACH |
Parker Micro Ball Valve
Email this page to a friend
Product Attributes
| Flow Diameter: | 0.21 Inch |
| Material: | Brass |
| Thread 1: | 1/4 NPT |
| Free Flow CV Factor: | 0.95 |
| UOM: | EACH |
| Series: | MV709 |
| Configuration Type: | Female to Female |
| Max Pressure: | 34 Bar (500 PSI) |
| Valve Type: | Ball Valve |
| Thread 1 Type: | NPT |
| Material Stem O-Ring: | Nitrile |
| Operating Temperature: | -35°F to +300°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Material - Ball: | Chrome Plated Brass |
| Material - Seats/Seals: | PTFE |
| Material - Handle: | Steel |
| Max Vacuum: | 29 |
