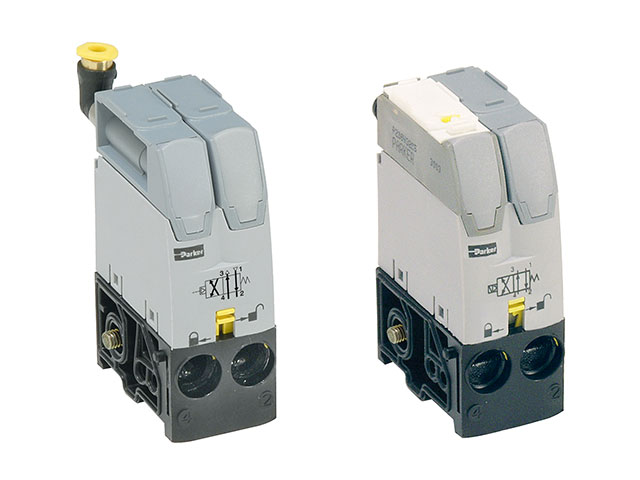

Moduflex T Series - Size 1 Valve
Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings
| Part #: P2M1T3ES2C | Manufacturer: Parker - Pneumatic Division |
|
Price/UOM: $74.66
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Product Attributes
| CV Factor: | 0.22 |
| Operator Type: | Solenoid |
| Operator Type Detail: | Single |
| Solenoid Voltage: | 24 VDC |
| Pilot Supply: | Internal |
| Override Type: | Multi-function |
| UOM: | EACH |
| Series: | Moduflex |
| Series Type: | T Series - Size 1 |
| Trade Name: | Moduflex |
| Pneumatic Valve Type: | Manifold Valve |
| Valve Passages: | 3-way |
| Valve Positions: | 2-position |
| Center Condition: | NC w/Exhaust Check |
| Offset Return Type: | Spring Return |
| Solenoid Connection: | M8 |
| Supply Pressure Range: | Vacuum to 123 PSIG (Vacuum to 8.3 bar) |
| Operating Temperature: | 5°F to 140°F (-15°C to 60°C) |
| Parker Division: | Pneumatic |
| Parker Group: | Automation |
