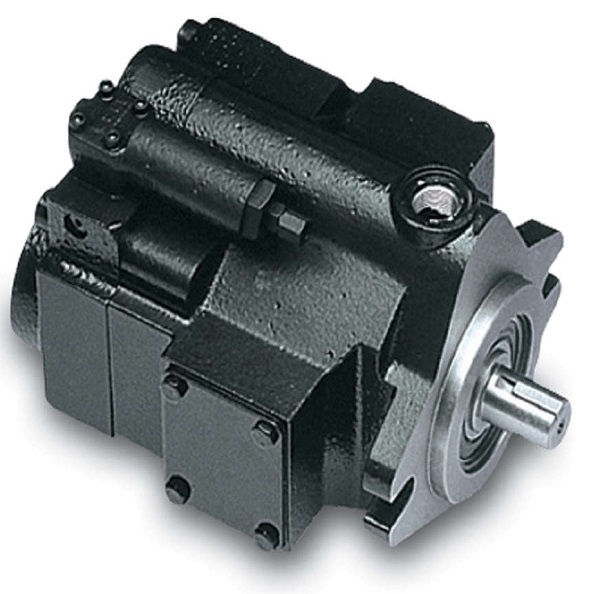

Click Image to Zoom
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.
Piston Pump - PVP 41 Series
Variable Volume Piston Pump
| Part #: PVP4136R2P11 | Manufacturer: Parker - Pump and Motor Division |
|
Price/UOM: $7,763.53
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Benefits/Features: High strength cast-iron housing. Built-in supercharger ensures high speed capability. Sealed shaft bearing. Two-piece design for ease of service. Cartridge type controls field changeable. Replaceable bronze clad port plate. Airbleed standard for quick priming. Hydrodynamic cylinder barrel bearing. Full pressure rating on most water glycol fluids. Pump case and shaft seal are subjected to inlet pressure only. Filter and/or cool drain line
Email this page to a friend
Product Attributes
| Displacement: | 41cc/rev (2.5 in3/rev) |
| Maximum Speed: | 2400 RPM |
| Pressure Range: | 3600 psi (248 bar) |
| UOM: | EACH |
| Series: | PVP |
| Shaft Options: | 7/8" Keyed (SAE B) |
| Shaft Rotation: | Clockwise |
| Volume Stop: | Adjusted Maximum Volume Stop |
| Control Options: | Pressure Compensated |
| Port Type: | Rear - Straight Thread SAE |
| Paint: | Painted |
Part Number Tags
PVP4136R2P11
