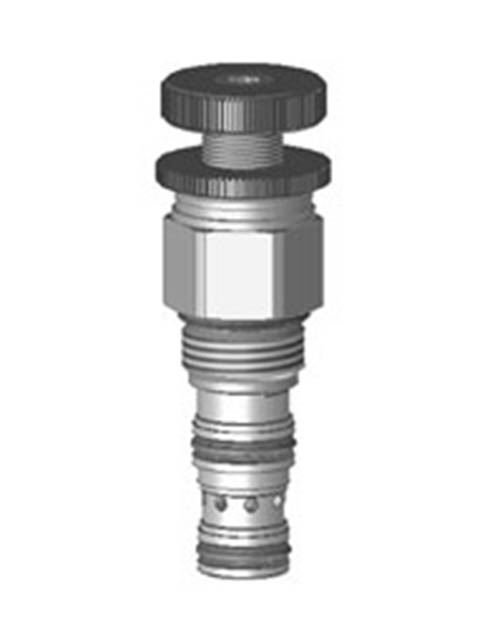

SVH081 Sequence Valve
Pilot Operated - Internal Sequence Valve for Size 08, 3-way Cavity
| Part #: SVH081S10 | Manufacturer: Parker - Hydraulic Cartridge Systems Division |
|
Price/UOM: $103.21
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
SVH081 Series Sequence Valve - Pilot Operated - Internal
Email this page to a friend
Product Attributes
| Rated Flow: | 45 LPM (12 GPM) |
| Leakage: | 82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI) |
| Max Pressure: | 380 Bar (5500 PSI) |
| Pressure Range: | 6.9 - 69 Bar (100 - 1000 PSI) |
| Seals: | “D”-Ring |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Adjustment Type: | Screw |
| Common Cavity: | Size 08, 3-way |
| Valve Body: | B08-3 |
| UOM: | EACH |
| Series: | SVH081 |
| Valve Type Detail: | Pilot Operated - Internal |
| Valve Type: | Sequence Valve |
| Port: | None - Cartridge Only |
| Parker Group: | Hydraulic |
| Parker Division: | Hydraulic Cartridge Systems |
| Common Cavity Type: | Size 08, 3-way |
Part Number Tags
SVH081S10
