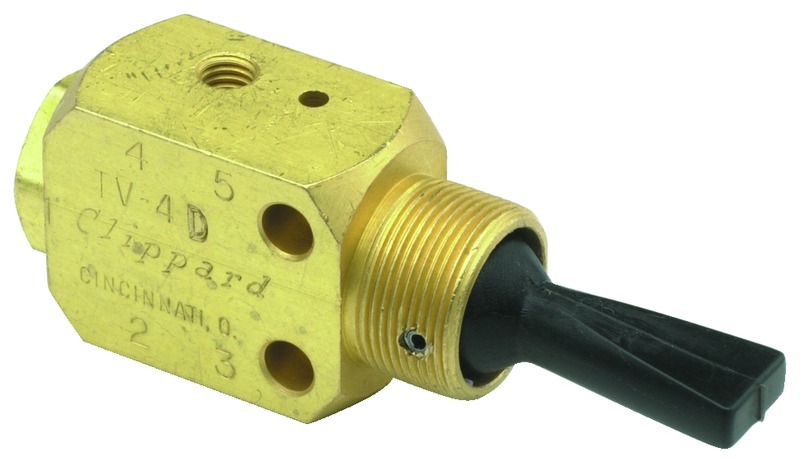

Toggle #10-32 Valve - TV Series
4-Way Valve
| Part #: TV-4D | Manufacturer: Clippard |
|
Price/UOM: $44.33
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
4-Way 3 position toggle valve with outlet ports open to atmosphere in the center position. The valve can be spring centered, 3 position detent or the "DM" provides a detent on one side and spring return on the other side. The TV-DM model can be used on the momentary side as a "jog" or "manual" control, and with the detented side for "automatic" or "run" mode.
Email this page to a friend
Product Attributes
| UOM: | EACH |
| Toggle: | Plastic |
| Function: | 4-Way Valve |
| Voltage: | 24 VDC |
| Series: | TV |
| Porting: | Detented/Detented |
| Pressure Range: | Vac. To 105 psig |
| Outlet: | #10-32 |
| Valve Type: | Toggle |
| Air Flow: | 4.5 scfm @ 50 psig; 7.5 scfm @ 100 psig |
Part Number Tags
TV-4D
