🡄 Back to Product: EO/EO-2 90° Elbow, Adjustable - WEE-UNF

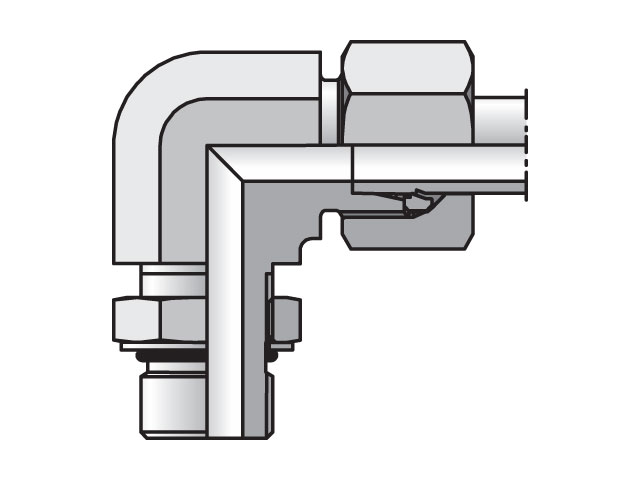

Click Image to Zoom
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.
EO/EO-2 90° Elbow, Adjustable - WEE-UNF
EO/EO-2 90° Elbow, Adjustable - 24° Flareless / SAE-ORB
| Part #: WEE08L7/16UNFCF | Manufacturer: Parker - Tube Fittings Division |
| Price/UOM: Call To Place Order |
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker EO and EO-2 metric flareless bite type tube fittings have become the "world standard' for many industrial manufacturers requiring dependable leak free hydraulic tube fittings. The EO progressive ring (ferrule) has two cutting edges that bite the tube outer diameter. EO-2 fittings incorporate elastomeric seals on all joints to insure leak free systems.
Email this page to a friend
Product Attributes
| End 1: | 8 mm |
| End 2: | 7/16-20 UN/UNF-2A |
| Material: | Steel |
| UOM: | EACH |
| O-Ring/Seal Material: | Nitrile |
| Pressure Series: | Light |
| Pressure Rating: | 315 bar |
| Configuration Type: | 90° Elbow |
| Trade Name: | EO/EO-2 |
| Series: | EO |
| Tube Fitting/Adapter Type: | Bite Type, EO/EO-2 Flareless |
| Configuration Sub-Type: | Adjustable - 24° Flareless / SAE-ORB |
| Inch/Metric: | Metric |
| End 2 Type: | UN/UNF-2A |
| Parker Group: | Fluid Connector |
| End 1 Type: | mm |
| Parker Division: | Tube Fitting |
Part Number Tags
WEE08L7/16UNFCF
