302 Series
Medium Pressure Rubber Worldwide DIN Hydraulic Hose Sold in 50ft
Email this page to a friend
| Inner Diameter | Working Pressure | Material | Mating Fitting Series | UOM |
|---|---|---|---|---|
| 0.25 Inch | 5800 PSI (400 bar) | Rubber | 43, 30 | FOOT |
| 1/4 Inch | 5800 PSI | Rubber | N/A | FOOT |
| 1/4 Inch | 5800 PSI | Rubber | N/A | FOOT |
| 1/4 Inch | 5800 PSI | Rubber | N/A | FOOT |
| 0.313 Inch | 5000 PSI (340 bar) | Rubber | N/A | FOOT |
| 5/16 Inch | 5000 PSI | Rubber | N/A | FOOT |
| 0.375 Inch | 4750 PSI (330 bar) | Rubber | 43, 30 | FOOT |
| 3/8 Inch | 4750 PSI | Rubber | N/A | FOOT |
| 3/8 Inch | 4750 PSI | Rubber | N/A | FOOT |
| 0.5 Inch | 4000 PSI (280 bar) | Rubber | 43, 30 | FOOT |
| 1/2 Inch | 4000 PSI | Rubber | N/A | FOOT |
| 1/2 Inch | 4000 PSI | Rubber | N/A | FOOT |
| 0.625 Inch | 3600 PSI (250 bar) | Rubber | 43, 30 | FOOT |
| 5/8 Inch | 3600 PSI | Rubber | N/A | FOOT |
| 0.75 Inch | 3100 PSI (210 bar) | Rubber | 43, 30 | FOOT |
| 3/4 Inch | 3600 PSI | Rubber | N/A | FOOT |
| 1 Inch | 2400 PSI (170 bar) | Rubber | 43, 30 | FOOT |
| 1 Inch | 2400 PSI | Rubber | N/A | FOOT |
| 1.25 Inch | 1800 PSI (120 bar) | Rubber | 43, 30 | FOOT |
| 1.5 Inch | 1300 PSI (90 bar) | Rubber | 43, 30 | FOOT |

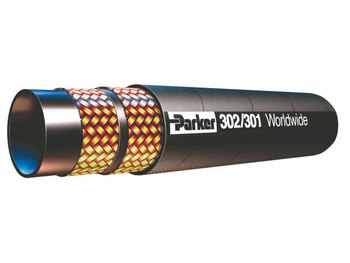

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Nitrile. Reinforcement: Two braids steel wire. Cover: Synthetic rubber.
