811 Series
Low Pressure Rubber 1/2 SAE Minimum Bend Radius Hydraulic Suction And Return Hose
Email this page to a friend
Showing 1 - 7 of 7
| Part # | Availability | Price | |
|---|---|---|---|
| 811-12 | 28,514 | $13.00 | |
| 811-16 | 11,079 | $15.66 | |
| 811-20 | 4,829 | $22.15 | |
| 811-24 | 3,235 | $29.59 | |
| 811-32 | 3,554 | $37.09 | |
| 811-40 | 990 | $51.33 | |
| 811-48 | 140 | $57.75 |
| Inner Diameter | Material | Working Pressure | UOM | Mating Fitting Series |
|---|---|---|---|---|
| 0.75 Inch | Rubber | 100 PSI (7 bar) | FOOT | 81, 88 |
| 1 Inch | Rubber | 70 PSI (5 bar) | FOOT | 81, 88 |
| 1.25 Inch | Rubber | 50 PSI (3 bar) | FOOT | 81, 88 |
| 1.5 Inch | Rubber | 50 PSI (3 bar) | FOOT | 81, 88 |
| 2 Inch | Rubber | 50 PSI (3 bar) | FOOT | 81, 88 |
| 2.5 Inch | Rubber | 62 PSI (4 bar) | FOOT | 88 |
| 3 Inch | Rubber | 62 PSI (4 bar) | FOOT | 88 |
Showing 1 - 7 of 7

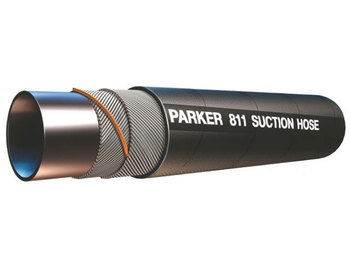

Suction and return line hose with 1/2 SAE minimum bend radius for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Multiple layers of fiber spiral and one helical wire. Cover: Synthetic rubber.
