22 Series 20622

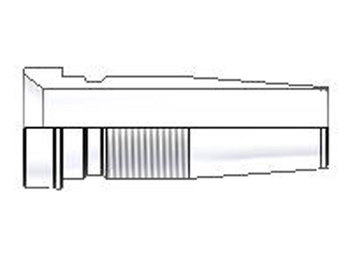

Field Attachable Nipple Female JIC 37° - Swivel - Straight
Email this page to a friend
| Material | Hose I.D. | Standard Thread | UOM |
|---|---|---|---|
| Steel | 1/2 Inch | 5/8 Inch | EACH |
| Brass | 1/2 Inch | 5/8 Inch | EACH |
| Steel | 5/8 Inch | 3/4 Inch | EACH |
| Brass | 5/8 Inch | 3/4 Inch | EACH |
| Steel | 7/8 Inch | 1 Inch | EACH |
| Brass | 7/8 Inch | 1 Inch | EACH |
| Steel | 1 1/8 inch | 1 1/4 Inch | EACH |
| Brass | 1 1/8 inch | 1 1/4 Inch | EACH |
| Steel | 1 3/8 Inch | 1 1/2 Inch | EACH |
| Steel | 1 13/16 inch | 2 Inch | EACH |
| Brass | 1 13/16 inch | 2 Inch | EACH |
| Steel | 3/16 Inch | 1/4 Inch | EACH |
| Brass | 3/16 Inch | 1/4 Inch | EACH |
| Brass | 1/4 Inch | 5/16 Inch | EACH |
| Steel | 5/16 Inch | 3/8 Inch | EACH |
| Brass | 5/16 Inch | 3/8 Inch | EACH |
| Steel | 13/32 Inch | 1/2 Inch | EACH |
| Brass | 13/32 Inch | 1/2 Inch | EACH |
22 Series Parker No-Skive Fittings is a 3 piece mandrel style field attachable (reusable) style fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short. 22 Series Fittings has zinc dichromate plating and are used on Parker with 201-261 , 206 , 221FR , 225 , 235 , 266 , SS25UL Hoses - Park er Engine_Airbrake_Marine_Gas Hoses.
