77 Series 1J977

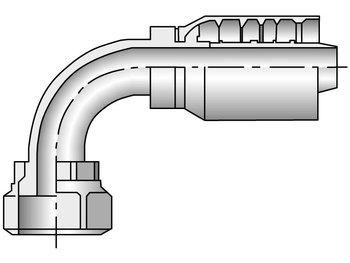

Parkrimp Permanent Female Seal-Lok - Swivel - 90° Elbow - Short Drop
Email this page to a friend
Showing 1 - 9 of 9
| Part # | Availability | Price | |
|---|---|---|---|
| 1J977-10-10 | 726 | $91.98 | |
| 1J977-10-8 | 111 | $76.99 | |
| 1J977-12-12 | 893 | $95.93 | |
| 1J977-12-8 | 59 | $105.56 | |
| 1J977-16-12 | 79 | $119.96 | |
| 1J977-16-16 | 897 | $123.84 | |
| 1J977-16-20 | 5 | $144.09 | |
| 1J977-20-20 | 290 | $182.06 | |
| 1J977-8-8 | 718 | $68.13 |
| Hose I.D. | Material | Standard Thread | UOM |
|---|---|---|---|
| 5/8 Inch | Steel | 5/8 Inch | EACH |
| 1/2 Inch | Steel | 5/8 Inch | EACH |
| 3/4 Inch | Steel | 3/4 Inch | EACH |
| 1/2 Inch | Steel | 3/4 Inch | EACH |
| 3/4 Inch | Steel | 1 Inch | EACH |
| 1 Inch | Steel | 1 Inch | EACH |
| 1 1/4 Inch | Steel | 1 Inch | EACH |
| 1 1/4 Inch | Steel | 1 1/4 Inch | EACH |
| 1/2 Inch | Steel | 1/2 Inch | EACH |
Showing 1 - 9 of 9
77 Series Parker Fitting is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short.
