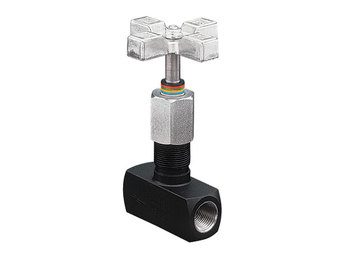

Colorflow Metering Valve - NPT
Parker Colorflow Metering Valve - NPT Ports
Email this page to a friend
| Max Flow | Material | UOM | Thread 1 | Effective Orifice Area - Control Flow (in2) | Effective Control Flow CV Factor | Material Poppet/Stem Seals |
|---|---|---|---|---|---|---|
| 3 GPM (11 LPM) | Steel | EACH | 1/8 NPT | 0.0107 | 0.244 | Nitrile |
| 3 GPM (11 LPM) | Steel | EACH | 1/8 NPT | 0.0107 | 0.244 | Nitrile |
| 3 GPM (11 LPM) | Steel | EACH | 1/8 NPT | 0.0107 | 0.244 | Nitrile |
| 5 GPM (19 LPM) | Steel | EACH | 1/4 NPT | 0.0216 | 0.493 | Nitrile |
| 5 GPM (19 LPM) | Steel | EACH | 1/4 NPT | 0.0216 | 0.493 | Nitrile |
| 5 GPM (19 LPM) | Steel | EACH | 1/4 NPT | 0.0216 | 0.493 | Nitrile |
| 5 GPM (19 LPM) | Steel | EACH | 1/4 NPT | 0.0216 | 0.493 | Nitrile |
| 8 GPM (30 LPM) | Steel | EACH | 3/8 NPT | 0.0567 | 1.294 | Nitrile |
| 8 GPM (30 LPM) | Steel | EACH | 3/8 NPT | 0.0567 | 1.294 | Nitrile |
| 8 GPM (30 LPM) | Steel | EACH | 3/8 NPT | 0.0567 | 1.294 | Nitrile |
| 8 GPM (30 LPM) | Steel | EACH | 3/8 NPT | 0.0567 | 1.294 | Nitrile |
| 8 GPM (30 LPM) | Steel | EACH | 3/8 NPT | 0.0567 | 1.294 | Nitrile |
| 15 GPM (57 LPM) | Steel | EACH | 1/2 NPT | 0.0845 | 1.93 | Nitrile |
| 15 GPM (57 LPM) | Steel | EACH | 1/2 NPT | 0.0845 | 1.93 | Nitrile |
| 15 GPM (57 LPM) | Steel | EACH | 1/2 NPT | 0.0845 | 1.93 | Nitrile |
| 25 GPM (95 LPM) | Steel | EACH | 3/4 NPT | 0.14 | 3.205 | Nitrile |
| 25 GPM (95 LPM) | Steel | EACH | 3/4 NPT | 0.14 | 3.205 | Nitrile |
| 40 GPM (151 LPM) | Steel | EACH | 1 NPT | 0.1675 | 3.829 | Nitrile |
| 1.8 GPM (7 LPM) | Steel | EACH | 1/8 NPT | 0.0053 | 0.121 | Nitrile |
| 0.5 GPM (2 LPM) | Steel | EACH | 1/8 NPT | 0.0014 | 0.032 | Fluorocarbon |
Parker Colorflow Metering Valve - NPT Ports
Thread 1:
1 NPT
Max Flow:
40 GPM (151 LPM)
Material:
Steel
Effective Orifice Area - Control Flow (in2):
0.1675
Effective Control Flow CV Factor:
3.829
Material Poppet/Stem Seals:
Fluorocarbon
Pkg Qty:
1
Pkg Qty/UOM:
1 EA
UOM:
EA
