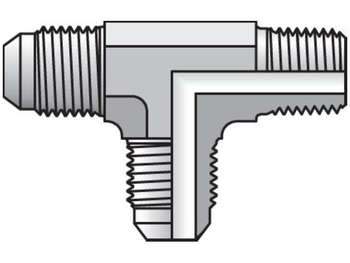

Triple-Lok 37° Tee RTX
Triple-Lok - Male Run Tee 37° Flare / NPTF / 37° Flare
Email this page to a friend
| Material | End 1 | End 2 | End 3 | UOM |
|---|---|---|---|---|
| Steel | 3/16 Inch | 1/8-27 NPTF | 3/16 Inch | EACH |
| Stainless Steel | 3/16 Inch | 1/8-27 NPTF | 3/16 Inch | EACH |
| Brass | 1/4 Inch | 1/8-27 NPTF | 1/4 Inch | EACH |
| Steel | 1/4 Inch | 1/8-27 NPTF | 1/4 Inch | EACH |
| Stainless Steel | 1/4 Inch | 1/8-27 NPTF | 1/4 Inch | EACH |
| Steel | 1/4 Inch | 1/4-18 NPTF | 1/4 Inch | EACH |
| Stainless Steel | 1/4 Inch | 1/4-18 NPTF | 1/4 Inch | EACH |
| Brass | 5/16 Inch | 1/8-27 NPTF | 5/16 Inch | EACH |
| Steel | 5/16 Inch | 1/8-27 NPTF | 5/16 Inch | EACH |
| Stainless Steel | 5/16 Inch | 1/8-27 NPTF | 5/16 Inch | EACH |
| Brass | 3/8 Inch | 1/4-18 NPTF | 3/8 Inch | EACH |
| Steel | 3/8 Inch | 1/4-18 NPTF | 3/8 Inch | EACH |
| Stainless Steel | 3/8 Inch | 1/4-18 NPTF | 3/8 Inch | EACH |
| Steel | 3/8 Inch | 3/8-18 NPTF | 3/8 Inch | EACH |
| Stainless Steel | 3/8 Inch | 3/8-18 NPTF | 3/8 Inch | EACH |
| Brass | 1/2 Inch | 3/8-18 NPTF | 1/2 Inch | EACH |
| Steel | 1/2 Inch | 3/8-18 NPTF | 1/2 Inch | EACH |
| Stainless Steel | 1/2 Inch | 3/8-18 NPTF | 1/2 Inch | EACH |
| Steel | 1/2 Inch | 1/2-14 NPTF | 1/2 Inch | EACH |
| Stainless Steel | 1/2 Inch | 1/2-14 NPTF | 1/2 Inch | EACH |
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
