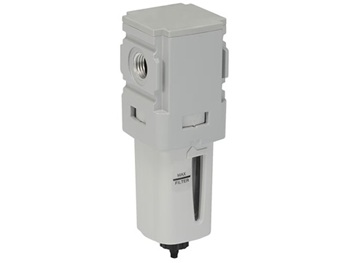

P33 Standard Global Modular Coalescing Filter
P33 Standard Airline Coalescing Filter
Email this page to a friend
Showing 1 - 8 of 8
| UOM | Port | Bowl Type | Filter Drain Type | Element Rating | Supply Pressure Range | Maximum Flow | Operating Temperature |
|---|---|---|---|---|---|---|---|
| EACH | 1/2 NPT | Poly with bowl guard | Auto Float | 0.01 micron | 15 to 150 PSIG (1 to 10.3 bar) | 72 SCFM (34 dm3/s) | -25°C to 52°C (-13°F to 25°F) |
| EACH | 1/2 NPT | Poly with bowl guard | Manual | 0.01 micron | 0 to 150 PSIG (0 to 10.3 bar) | 72 SCFM (34 dm3/s) | -25°C to 52°C (-13°F to 25°F) |
| EACH | 1/2 NPT | Metal with sight gauge | Auto Float | 0.01 micron | 15 to 250 PSIG (1.0 to 17.2 bar) | 72 SCFM (34 dm3/s) | -25°C to 65.5°C (-13°F to 150°F) |
| EACH | 1/2 NPT | Metal with sight gauge | Manual | 0.01 micron | 0 to 250 PSIG (0 to 17.2 bar) | 72 SCFM (34 dm3/s) | -25°C to 65.5°C (-13°F to 150°F) |
| EACH | 3/4 NPT | Poly with bowl guard | Auto Float | 0.01 micron | 15 to 150 PSIG (1 to 10.3 bar) | 72 SCFM (34 dm3/s) | -25°C to 52°C (-13°F to 25°F) |
| EACH | 3/4 NPT | Poly with bowl guard | Manual | 0.01 micron | 0 to 150 PSIG (0 to 10.3 bar) | 72 SCFM (34 dm3/s) | -25°C to 52°C (-13°F to 25°F) |
| EACH | 3/4 NPT | Metal with sight gauge | Auto Float | 0.01 micron | 15 to 250 PSIG (1.0 to 17.2 bar) | 72 SCFM (34 dm3/s) | -25°C to 65.5°C (-13°F to 150°F) |
| EACH | 3/4 NPT | Metal with sight gauge | Manual | 0.01 micron | 0 to 250 PSIG (0 to 17.2 bar) | 72 SCFM (34 dm3/s) | -25°C to 65.5°C (-13°F to 150°F) |
Showing 1 - 8 of 8
P33 Standard Global Modular Coalescing Filter
